Ford Focus (USA) 1st (2000–2007) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- FO38
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

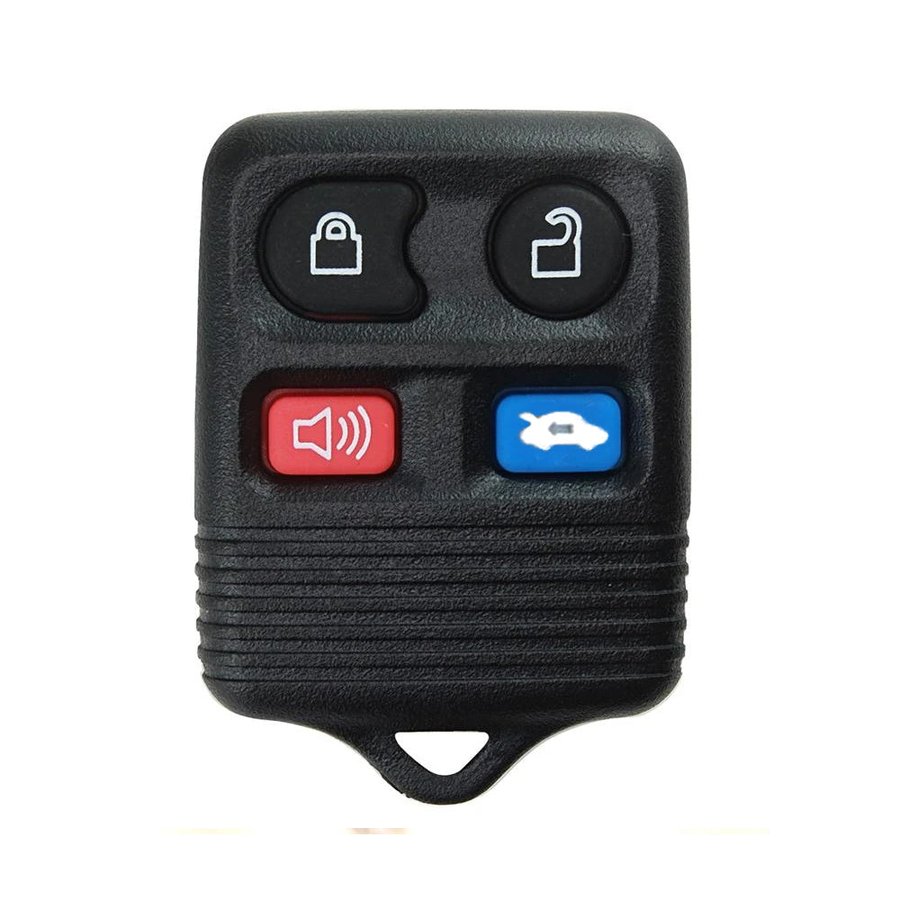

| 315 MHz · CWTWB1U331 | 2001-2007 NA (CWTWB1U331 grant Sept 2001); 2000-2001 early MY used GQ43VT11T predecessor | CWTWB1U331 | F87B-15K601-AB | none | 315 MHz | CR2032 | n/a |
| 315 MHz · OUCD6000022 | NOT confirmed for the 2000-2007 Focus. Two independent locksmithkeyless fitment tables list Focus 2010 only for OUCD6000022 / 164-R7040; oemcarkeymall lists 2008. The 2006-2007 Focus is documented on the standalone CWTWB1U331 fob (variant 0) plus the separate PATS key (variant 2). | OUCD6000022 | 164-R7040 | Texas 4D63 (80-bit) | 315 MHz | CR2032 | H75 keyway (Ilco RHK-FORD-4B4 / AX00010830; H92-PT profile) |
| transponder · 4D60/4D63 · H74/H86/H92 | 2000-2007 NA — 4D60 on H74/H86 (keyway H75) for 2000-2005; 4D63 80-bit on H92-PT (keyway H75) for 2006-2007 | n/a | 011-R0250 | Texas Crypto 4D60 (2000-2005) / Texas Crypto 4D63 80-bit (2006-2007) | n/a | n/a | H74 / H86 (4D60 era) ; H92-PT keyway H75 (4D63 era) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + autokeyprog + FORScan.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Ford Focus (USA) 4D60 PATS requires professional OBD tool — no self-programming procedure.
- On site: engine off · Maintain 12V+ · Clear PATS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Ford Focus (USA) (2000-2007) uses Texas 4D60 — transitional Ford PATS chip. Covered by Autel IM608 + IMKPA, AD Smart Pro ADS178, Lonsdor K518 USA. PATS PIN via FORScan / autokeyprog.com.
- Smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chip before booking (this chassis facelift): Ford modern PATS spans PATS 5/6 ID46 HITAG-2 (2011-2014 typical) and PATS 7 ID49 HITAG-PRO (2014+). Some 2014-2015 facelifts shipped with mid-cycle chip swap — confirm transponder ID from a working key with FORScan or Lonsdor K518 reader before quoting.
- Tool kit context: Autel IMKPA Ford module is the dominant add-key accessory (~$5-15/session for ID49 cloud calc). AD Smart Pro ADS178 also strong on Ford. Lonsdor LKE Smart Key Emulator for K518 simulated-key flow. Xhorse KH100 + Ford module confirmed. APB112 simulator NOT typically needed. G-Box bench EEPROM NOT used. XP400 PRO only for PCM/IPC bench fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Ford Focus (USA) 4D60 PATS — professional tool mandatory.
- AKL for Ford 4D60 PATS needs PATS PIN (FORScan / autokeyprog / NASTF) AND online cloud token on ID49 era.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA + Ford online token for ID49 cloud calc, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path, Xhorse KH100 Ford. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if PCM/IPC EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi FO38 (CW).
57 verified sources · Last verified: 2026-08-10
