Ford Freestyle 1st generation (2005–2007) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- FO38

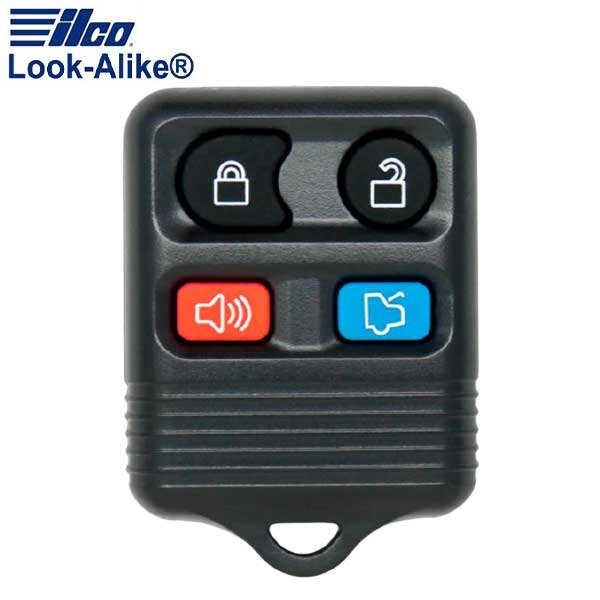

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · CWTWB1U331 / CWTWB1U345 | 2005–2007 NA (all trims) — paired with a separate bladed transponder ignition key | CWTWB1U331 / CWTWB1U345 | 8L3T-15K601-AB | none | 315 MHz | CR2032 | none |
| transponder-only · 4D63 40-bit · H84/H92 | 2005–2007 NA — companion ignition key to the separate remote fob (variant 0) | n/a | 164-R8040 | Texas Crypto 4D63 (40-bit) | n/a | n/a | H75 (H84-PT / H92-PT; Ilco 196FD, JMA FO-15D, Silca FO40R) |
| 315 MHz · OUCD6000022 | 2006–2007 NA — integrated remote+transponder one-piece key (alternative to the separate fob) | OUCD6000022 | 164-R7040 | Texas Crypto ID 4D63 80-bit (PATS 3/4 era) | 315 MHz | CR2032 | H75 (HA keyway) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + autokeyprog + FORScan.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Ford Freestyle PATS 4D63 PATS 3-4 requires professional OBD tool — no self-programming procedure.
- On site: engine off · Maintain 12V+ · Clear PATS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Ford Freestyle uses Texas Crypto 4D63 80-bit PATS 3-4 (2005-2007). Covered by Autel IM608 Pro II + IMKPA Ford (~$5-10/session), AD Smart Pro ADS178 Ford, Lonsdor K518 USA + Ford adapter, Xhorse + KH100, OBDSTAR Ford menu. PATS PIN via FORScan with license OR autokeyprog.com PATS calculator OR NASTF locksmith database.
- Key fob/blade: ensure existing battery (if applicable) is functional before starting.
- Verify chip before booking (this chassis facelift): Ford PATS spans 4C (40-bit, pre-2003 typical), 4D63 (80-bit, 2003-2014 typical), 4D60 transitional. Some 2002-2004 chassis (Mustang, F-150, Crown Vic) shipped with mid-cycle chip swap — confirm transponder ID from a working key with FORScan or Lonsdor K518 reader before quoting.
- Tool kit context: Autel IMKPA Ford module is the dominant add-key accessory (~$5-10/session). AD Smart Pro ADS178 also strong on Ford. Lonsdor LKE Smart Key Emulator for K518 simulated-key flow. Xhorse KH100 + Ford module confirmed. APB112 simulator NOT typically needed. G-Box bench EEPROM NOT used. XP400 PRO only for PCM bench fallback.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Ford Freestyle PATS 4D63 PATS 3-4 — professional tool mandatory.
- PATS 4D63 PATS 3-4 AKL needs PATS PIN (FORScan license / autokeyprog.com / NASTF) — confirm AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Autel IMKPA + Ford token for cloud-bound PATS calc, Lonsdor LKE Smart Key Emulator for K518 simulated-key AKL path, Xhorse KH100 Ford. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if PCM EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi FO38 (CW).
