Ford Galaxy 2nd generation (2006–2015) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HU101
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

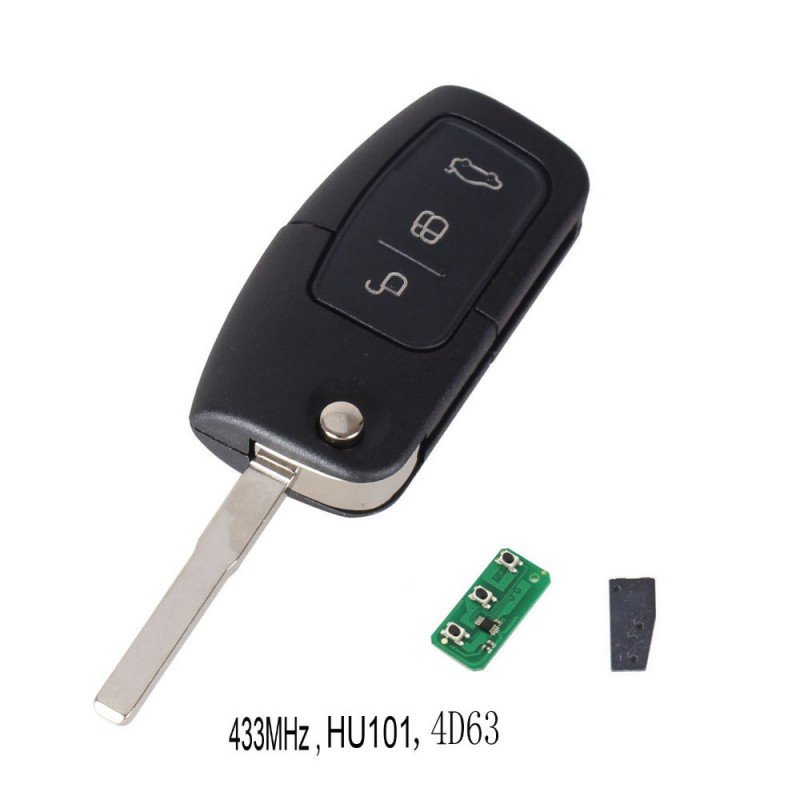

| 433.92 MHz · 3M5T-15K601-AC | 2006-2010 EU (pre-facelift WA6) | n/a | 3M5T-15K601-AC / 3M5T-15K601-AB / 3M5T-15K601-DB | Texas 4D63 (80-bit) | 433.92 MHz | CR2032 | HU101 |
| 433.92 MHz · AM5T-15K601-AD | 2010-2015 EU (facelift WA6) | n/a | AM5T-15K601-AD | Texas 4D63 / ID63 (80-bit) | 433.92 MHz | CR2032 | HU101 / FO21 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/forscan/autokeyprog.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration. VIN required for dealer PATS lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Ford Galaxy 2nd gen, 2006-2015 EU-only) spans the Ford PATS 4-5 era — uses HITAG-2 ID46 chip family (PCF7935 early, PCF7945 late). Ford Galaxy 2 was not sold in the US; EU/UK aftermarket coverage via Autel IM608 II + Xhorse Key Tool Plus. PIN from FORScan with paid license, autokeyprog.com Ford PATS calculator, or dealer.
- If 2 existing PROGRAMMED keys are present, the 2-key on-board cycle (no diagnostic tool) works on most PATS 4-5 transponder cars — quote accordingly.
- AKL erases all existing PATS key registrations — bring minimum 2 new key blanks.
- Maintain 12V+ throughout — AKL session takes 10-20 minutes including PIN service.
Lockout
Door pick / decode: Lishi HU101 (CW).
11 verified sources · Last verified: 2026-08-10
