Ford Fusion Energi 2nd gen (2013–2020) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- FO38

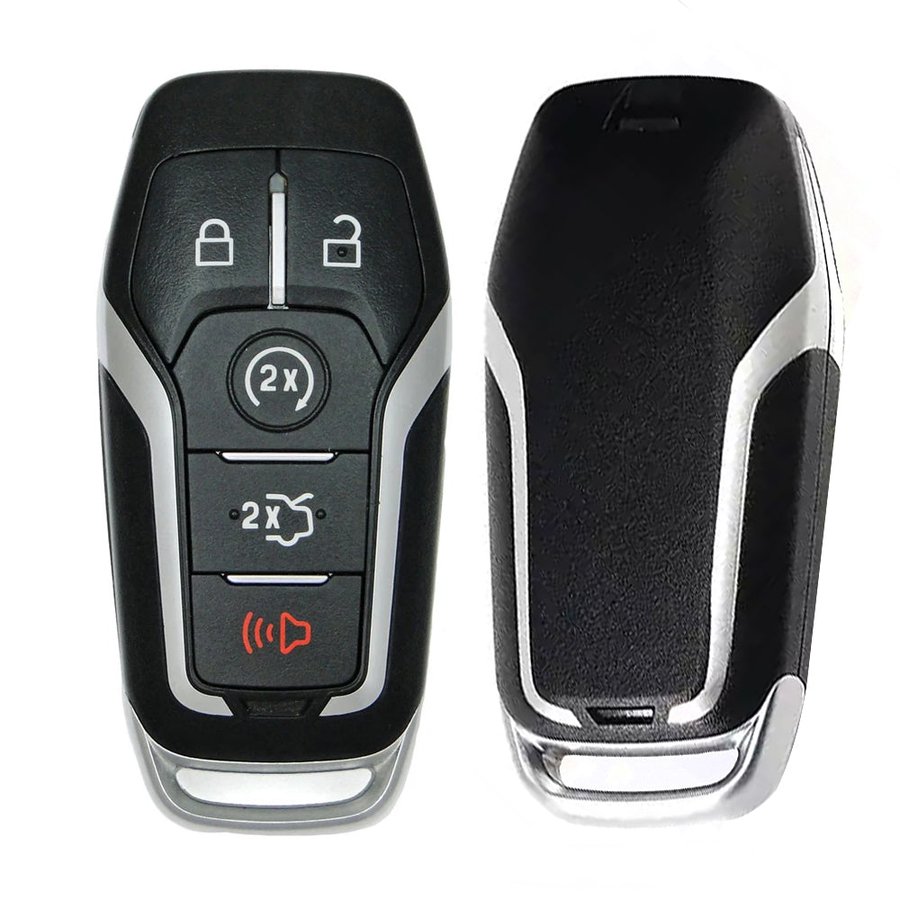

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 902 MHz · M3N-A2C31243300 | 2013-2016 NA (Titanium PHEV, push-start) | M3N-A2C31243300 | 164-R7989 | Texas/NXP HITAG-Pro ID49 (128-bit) | 902 MHz | 2x CR2025 | HU101 (high-security emergency insert) |
| 315 MHz · M3N-A2C93142300 | 2017-2020 NA (all Energi trims, push-start) | M3N-A2C93142300 | 164-R8150 | NXP HITAG-Pro ID49 (128-bit) | 315 MHz | CR2450 | HU101 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/forscan/autokeyprog.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration. VIN required for dealer PATS lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Ford Fusion Energi 2 PHEV, 2013-2020) spans Ford PATS 4-5 era — requires a 4-digit in-code PIN. Tool reads out-code via OBD; in-code obtained via NASTF locksmith database, FORScan with paid license, autokeyprog.com Ford PATS calculator, or dealer phone process. Tech Authority subscription provides factory PIN lookup.
- If 2 existing PROGRAMMED keys are present, the 2-key on-board cycle (no diagnostic tool) works on most PATS 4-5 transponder cars — quote accordingly.
- AKL erases all existing PATS key registrations — bring minimum 2 new key blanks.
- Maintain 12V+ throughout — AKL session takes 10-20 minutes including PIN service.
- Fusion Energi is PHEV — confirm 12V battery healthy before AKL.
Lockout
Door pick / decode: Lishi FO38 (CCW).
