Ford Puma 2nd generation (2020–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU101

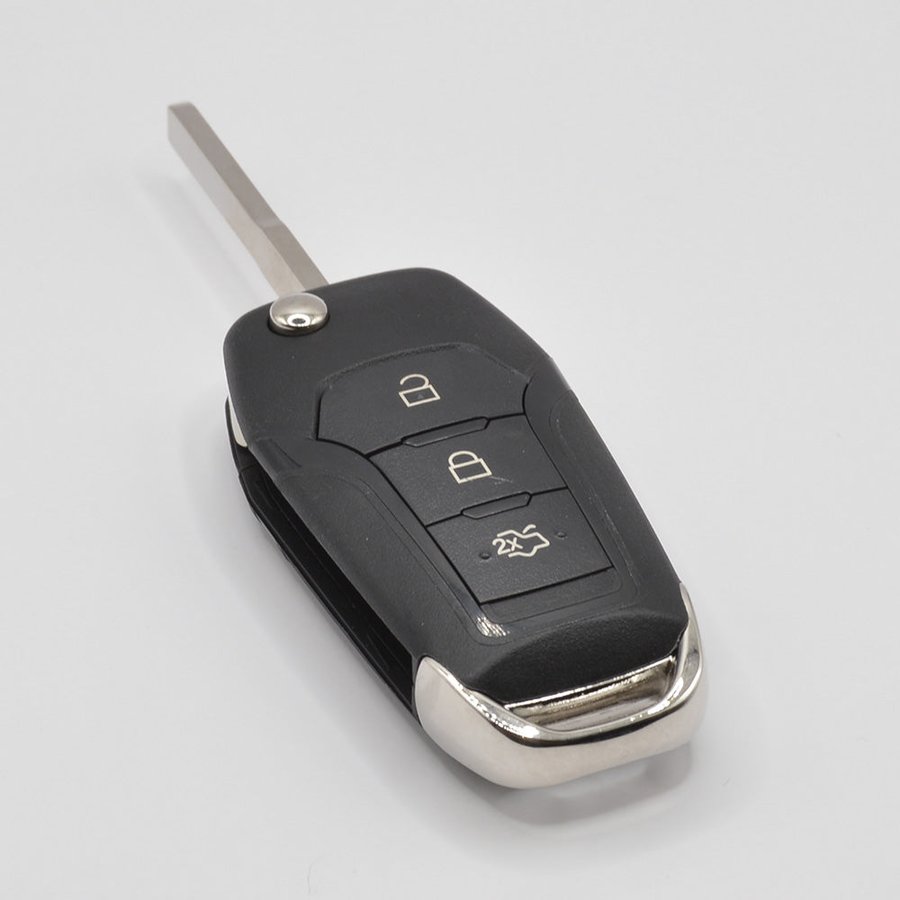

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · 2089152 | 2019–2025 EU/AU/ZA — standard (non-keyless) trims | n/a | 2089152 | NXP HITAG-Pro ID49 (PCF7953P / NCF295xF, 128-bit) | 433.92 MHz | CR2032 | HU101 / FO101 |
| 433.92 MHz · J1BT-15K601-AA | 2019–2025 EU/AU/ZA — Keyless Entry pack trims | n/a | J1BT-15K601-AA | NXP HITAG-Pro ID49 (PCF7953P / NCF295xF, 128-bit) | 433.92 MHz (FSK) | CR2032 | HU101 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: Ford incode (forscan / dealer).
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. VIN for dealer key code lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Ford Puma 2, 2020-2025) is EU-only (not sold in NA) — uses Ford Modular IMMO with HITAG-PRO ID49 chip typically. Verify by reading existing key with chip reader; some EU early builds shipped with HITAG-2 ID46. Autel IM608 II + Xhorse Key Tool Plus + Lonsdor K518 cover Ford NA fleet but EU Puma 2 has variable coverage — confirm aftermarket support by VIN before quoting.
Lockout
Door pick / decode: Lishi HU101 (CW).
8 verified sources · Last verified: 2026-08-06
