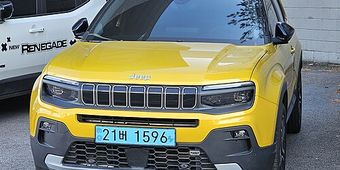

Jeep Avenger EV 1st generation (2024–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- SIP22
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · IM3A | 2024–2025 — EV, e-Hybrid (mild-hybrid), petrol; all trims (Longitude/Altitude/Summit) | n/a | 9846624180 | HITAG-AES (NXP NCF29A1M / ID4A, "4A") | 433.92 MHz | CR2032 | VA2 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: Stellantis dealer PIN.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a.
- Bring: Photo ID + vehicle registration. Title for AKL strongly recommended.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Jeep Avenger EV, 2024-2025) is EU-only — Stellantis Smart Car platform (shared with Peugeot e-208/e-2008, Opel Mokka EV). Uses HITAG-AES Megamos IMMO. Autel IM608 II + Xhorse Key Tool Plus + Lonsdor K518 Stellantis packages may cover, but Avenger EV is too new for confirmed aftermarket support as of 2026. Confirm tool firmware coverage before quoting.
Lockout
Door pick / decode: Lishi SIP22 (CW).
4 verified sources · Last verified: 2026-08-10
