Jeep Cherokee 2nd (XJ) (1984–2001) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- CY24
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

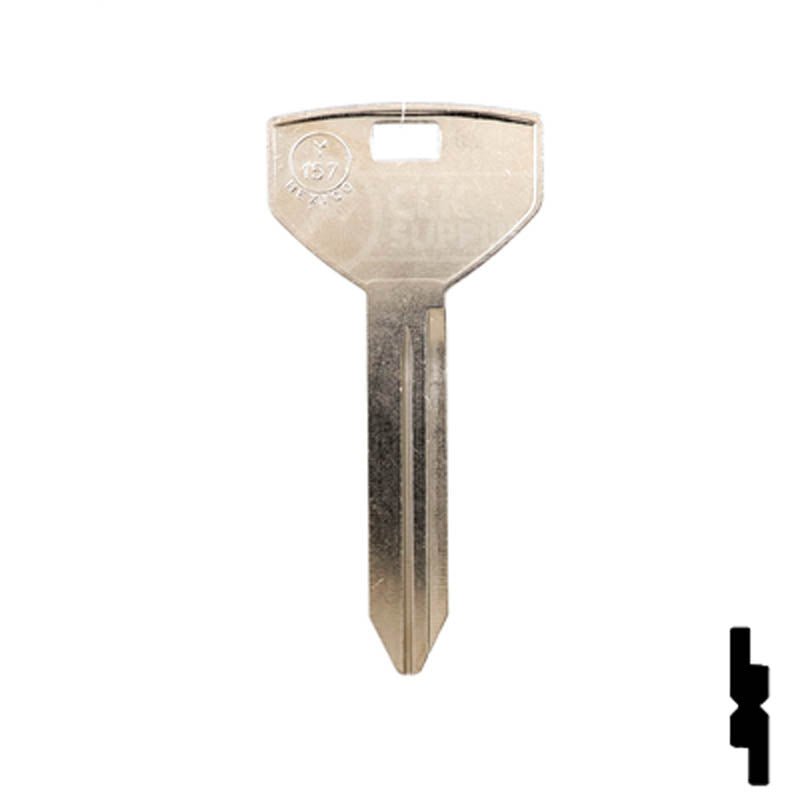

| mechanical · Y157/Y159 no-chip blade | 1984–2001 (all markets; black non-transponder key on 2000–2001 non-SKIS cars) | n/a | n/a | none | n/a | n/a | B46 / Y154 / Y155 / Y157 / Y159 |
| 315 MHz · GQ43VT9T | 1999-2001 NA (factory keyless-entry option; the XJ did not offer this remote before MY1999) | GQ43VT9T | 56036859 | none | 315 MHz | CR2016 | n/a |
| transponder · 4D64 · Y160-PT | 2000–2001 NA (optional Sentry Key Immobilizer System, SKIS) | n/a | 05010366AA | Texas Crypto ID 4D64 | n/a | n/a | Y159 / Y160-PT (Ilco IAX00000502P; JMA TP21CHR-15.P; Strattec 692325 / 5905612 / 692958) |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · No DTC scan needed.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Jeep Cherokee (1984-2001) is pre-immobilizer — no transponder chip. The blade alone starts the vehicle. Locksmith cuts to OEM code from VIN or existing key. No chip-programming tools needed. Remote (if equipped) learned via in-vehicle key sequence per OEM service manual.
- Key/remote: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Autel IM608 Pro II + IMKPA can reprogram remote-function radio for pre-immobilizer cars if equipped. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT applicable to mechanical-only chassis.
- Verify chip before booking (this chassis facelift): mechanical-only pre-immobilizer chassis. Some 1996-1999 facelift versions added transponder mid-cycle — confirm key has no chip with Lonsdor K518 reader before quoting.
- Jeep Cherokee pre-immobilizer — no chip-level AKL. Mechanical AKL via lock cylinder rekey or new ignition cylinder if lost lock.
- Bring ALL replacement remotes (if equipped) before starting in-vehicle programming sequence.
- No professional tool needed for blade — only locksmith cut. Remote-only AKL via in-vehicle key dance.
Lockout
Door pick / decode: Lishi CY24 (CW).
42 verified sources · Last verified: 2026-08-10
