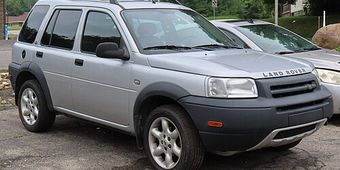

Land Rover Freelander 1 1st (L314) (2002–2005) — Key Programming Reference

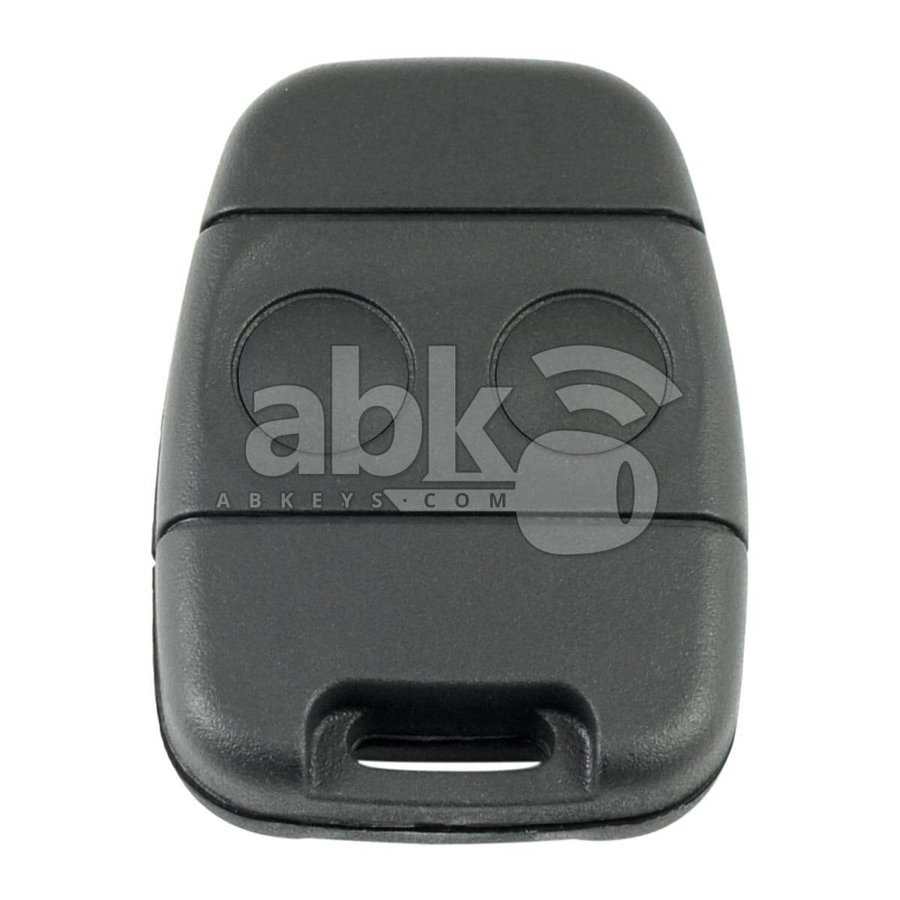

Land Rover Freelander 1 2002–2005 key fob

Difficulty: hard
Lishi / lockout: LR2

Key fobs & transponder keys (2 variants)

Key	Years	FCC ID	P/N	Chip	Freq	Battery	Blade
315 MHz · KHH17TN	2002–2005 US/NA (Americas-spec)	KHH17TN	YWX101210	none	315 MHz	CR2032	n/a
433 MHz · YWX101220	1997–2006 Europe / Australia / RoW (433 MHz)	n/a	YWX101220	none	433.92 MHz	CR2032	n/a

Programming procedures

What the job needs

Add a key: 1 existing working key required.
All keys lost: no existing working key needed.
PIN / security code: JLR USA module / k518.
Online / server access: required — None.
On-board (no tool) sequence: possible for this case.
On site: engine off · Clear IMMO DTCs.
Bring: Photo ID + vehicle registration.

Tool coverage

Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.

Notes & cautions

This chassis (Land Rover Freelander 1 L314, 2002-2005 NA) spans the JLR Megamos crypto → PCF7935 chip transition — pre-2004 typically Megamos, 2004-2005 typically PCF7935. Verify chip before ordering blanks. JLR pre-2010 legacy era uses LR2 blade with HU101-style cut. Lonsdor K518 + JLR USA Module recommended for AKL.
Lonsdor K518 + JLR USA module is the locksmith standard. Autel IM608 II / Xhorse VVDI Key Tool Plus also work.
Freelander 1 chip status unclear — may be mechanical only. confirm with reader.
AKL erases existing keys — bring minimum 2 new transponders matched to chip.

Lockout

Door pick / decode: Lishi LR2 (CW).

35 verified sources · Last verified: 2026-08-09
