Land Rover LR4 1st generation (2010–2016) — Key Programming Reference

Key fobs & transponder keys (2 variants)

Photo	Key	Years	Market	FCC ID	P/N	Chip	Freq	Battery	Blade

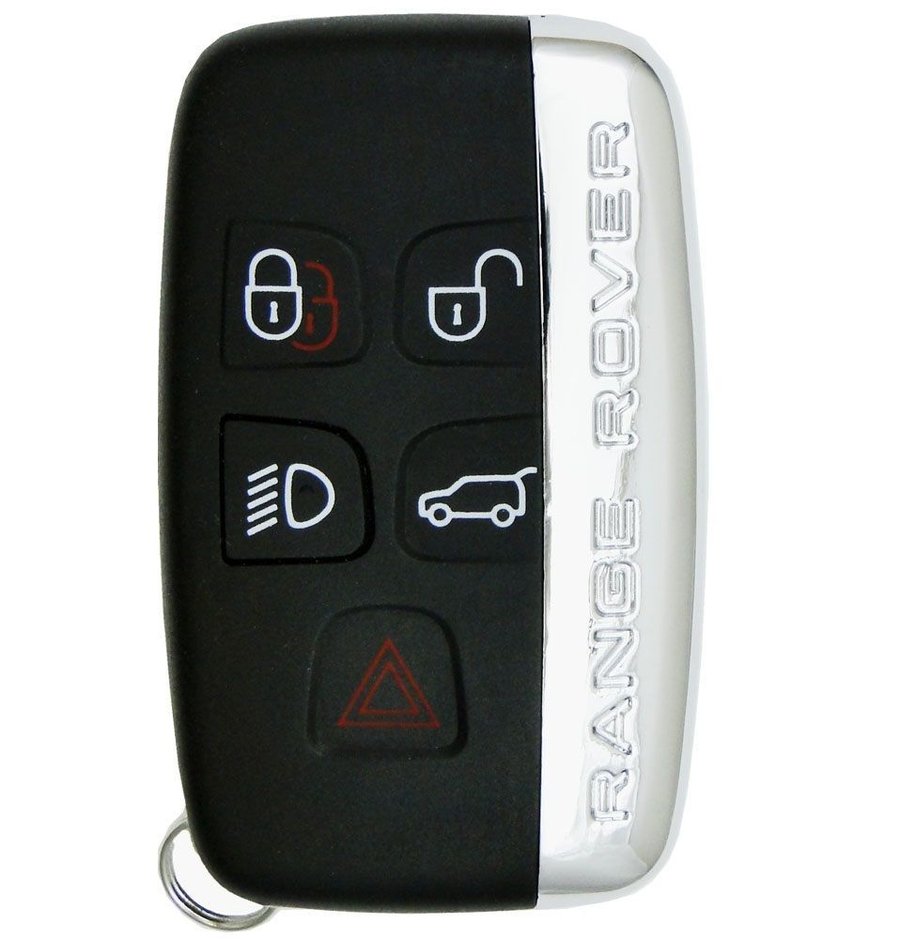

	315 MHz · KOBJTF10A	2010–2016 NA (LR4 nameplate)	Americas	KOBJTF10A	CH22-15K601-AB	NXP HITAG-PRO ID49 (PCF7953P)	315 MHz	CR2032	HU101
	433 MHz · CH22-15K601-BF	2010–2016 (UK/EU "Discovery 4"; AU/NZ; GCC/Middle East "LR4")	Europe · Asia-Pacific · Other	n/a	AH22-15K601-BF / CH22-15K601-BF	NXP HITAG-PRO ID49 (PCF7953P)	433 MHz	CR2032	HU101

Programming procedures

What the job needs

• Add a key: 1 existing working key required.
• All keys lost: no existing working key needed.
• PIN / security code: required — NASTF + Lonsdor JLR + dealer.
• Online / server access: required — JLR cloud token for ID49.
• On-board (no tool) sequence: not available — Land Rover LR4 (Discovery 4) JLR ID49 HITAG-PRO requires professional OBD tool — no self-programming.
• On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
• Bring: Photo ID + vehicle registration. VIN cross-check before start.

Tool coverage

Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.

Notes & cautions

• This chassis Land Rover LR4 (Discovery 4) uses NXP HITAG-PRO ID49 (JLR 2014+, 2010-2016). Lonsdor K518 USA + JLR USA module (separately purchased SKU, ~$200) is the dominant aftermarket path. Autel IM608 Pro II also supported. AVDI JLR niche tool. Newest 2024+ L460/L461 increasingly dealer-bound.
• JLR smart proximity or remote head key: ensure existing key fob battery is functional before starting.
• Verify chip before booking (this chassis facelift): JLR ID49 HITAG-PRO (2014+) replaced PCF7941 HITAG-2 (2008-2014) which replaced Texas 4D60 (pre-2008). Some 2013-2015 Range Rover and Evoque chassis shipped with mid-cycle chip swap — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
• Tool kit context: Lonsdor JLR USA module is a SEPARATELY purchased SKU (~$200) — essential for K518 JLR coverage. Xhorse KH100 + JLR module also confirmed. APB112 simulator, G-Box bench EEPROM, LKE Smart Key Emulator NOT typically required. XP400 PRO for BCM bench fallback only.
• All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
• No manual AKL for Land Rover LR4 (Discovery 4) JLR ID49 HITAG-PRO — professional tool mandatory.
• AKL for JLR ID49 HITAG-PRO typically needs NASTF + Lonsdor JLR USA module ($200 SKU) + dealer-bound on newest L460/L461.
• Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
• AKL accessory needs: Lonsdor JLR USA module ($200 SKU) is mandatory for K518 JLR path; Xhorse KH100 JLR. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if BCM/IMMO EEPROM corrupted (rare).

Lockout

Door pick / decode: Lishi LR2 (CCW).

27 verified sources · Last verified: 2026-08-06

Step-by-step tool menu paths, the full source list and video guides for this case are in the KeyAssist app — free to start, works offline.

Quick answers

What FCC ID does the Land Rover LR4 2010–2016 key use?

KOBJTF10A — smart key.

What transponder chip does the Land Rover LR4 2010–2016 key use?

NXP HITAG-PRO ID49 (PCF7953P) — smart key.

What key blade and Lishi tool fit the Land Rover LR4 2010–2016?

Key blade: HU101. Lishi: LR2.

What OEM part number does the Land Rover LR4 2010–2016 key use?

CH22-15K601-AB — smart key; AH22-15K601-BF / CH22-15K601-BF — smart key.
