Land Rover Range Rover 3rd (L322) (2003–2012) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- LR2

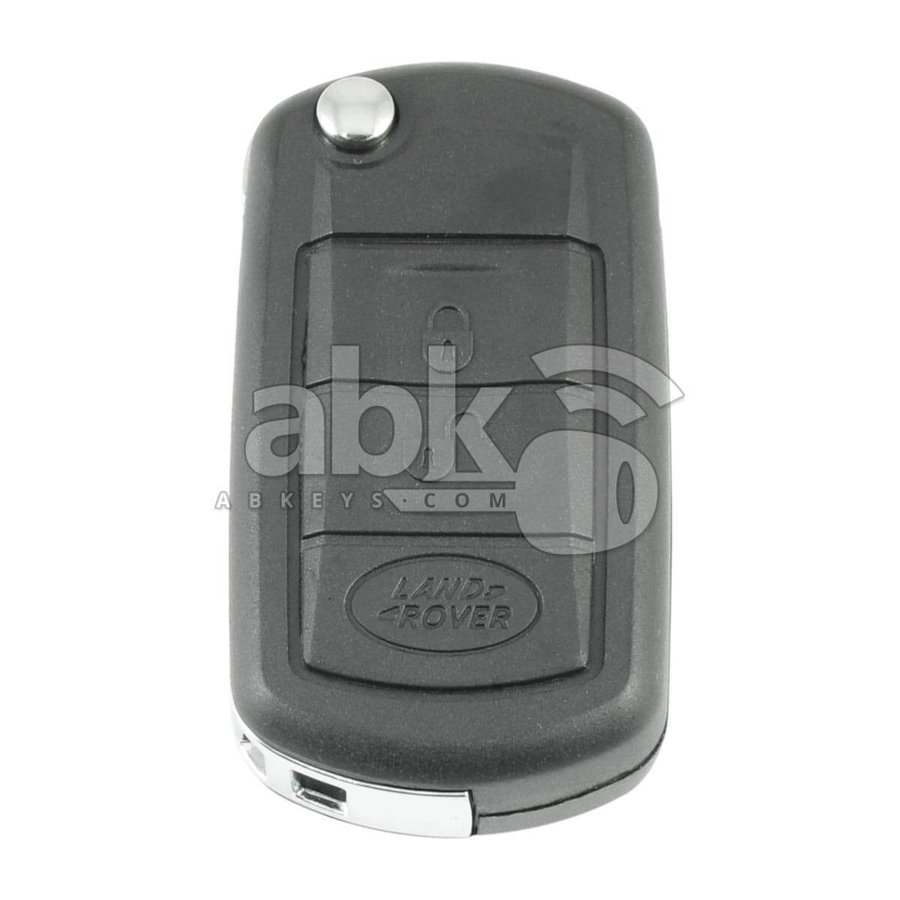

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · NT8-15K6014CFFTXA | 2006–2011 (post-2006 facelift, Ford/Jaguar AJ-V8 era) | NT8-15K6014CFFTXA | YWX000071 | PCF7941 (NXP HITAG-2 / ID46) | 315 MHz (NA) / 433.92 MHz (EU/RoW) | VL2330 (rechargeable) | HU92 |
| 315 MHz · LX8FZV | 2003-2005 NA MY (EU cars from calendar 2002) — pre-2006-facelift L322 | LX8FZV | YQE000050 | PCF7935 (Philips ID44 / BMW EWS) | 315 MHz (NA) / 433.92 MHz (EU/RoW) | CR2032 | HU92 |
| 315 MHz · KOBJTF10A | 2011–2012 (final L322 MY before L405 transition in 2013) | KOBJTF10A | CH22-15K601-AB | NXP HITAG-PRO ID49 / PCF7953P (128-bit) | 315 MHz (NA) / 433.92 MHz (EU/RoW) | CR2032 | HU101 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF + Lonsdor JLR + dealer.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Land Rover Range Rover L322 JLR PCF7941 ID46 requires professional OBD tool — no self-programming.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Land Rover Range Rover L322 uses Philips PCF7941/7945A/7953A HITAG-2 (2003-2012). Covered by Lonsdor K518 USA + JLR adapter, Autel IM608 + IMKPA JLR module, Xhorse VVDI Key Tool Plus + JLR KH100 module. PIN via BCM read or NASTF locksmith database.
- JLR smart proximity or remote head key: ensure existing key fob battery is functional before starting.
- Verify chip before booking (this chassis facelift): JLR ID49 HITAG-PRO (2014+) replaced PCF7941 HITAG-2 (2008-2014) which replaced Texas 4D60 (pre-2008). Some 2013-2015 Range Rover and Evoque chassis shipped with mid-cycle chip swap — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- Tool kit context: Lonsdor JLR USA module is a SEPARATELY purchased SKU (~$200) — essential for K518 JLR coverage. Autel IMKPA JLR module + cloud token (~$5-15/session). Xhorse KH100 + JLR module also confirmed. APB112 simulator, G-Box bench EEPROM, LKE Smart Key Emulator NOT typically required. XP400 PRO for BCM bench fallback only.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Land Rover Range Rover L322 JLR PCF7941 ID46 — professional tool mandatory.
- AKL for JLR PCF7941 ID46 typically needs NASTF + Lonsdor JLR USA module ($200 SKU) + dealer-bound on newest L460/L461.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- AKL accessory needs: Lonsdor JLR USA module ($200 SKU) is mandatory for K518 JLR path; Autel IMKPA + JLR cloud token; Xhorse KH100 JLR. APB112 NOT mandatory. G-Box bench EEPROM NOT used. XP400 PRO only if BCM/IMMO EEPROM corrupted (rare).
Lockout
Door pick / decode: Lishi LR2 (CW).
