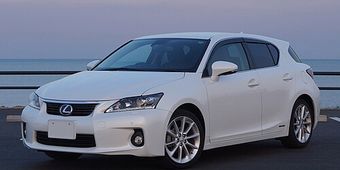

Lexus CT200h 1st generation (2011–2017) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY48

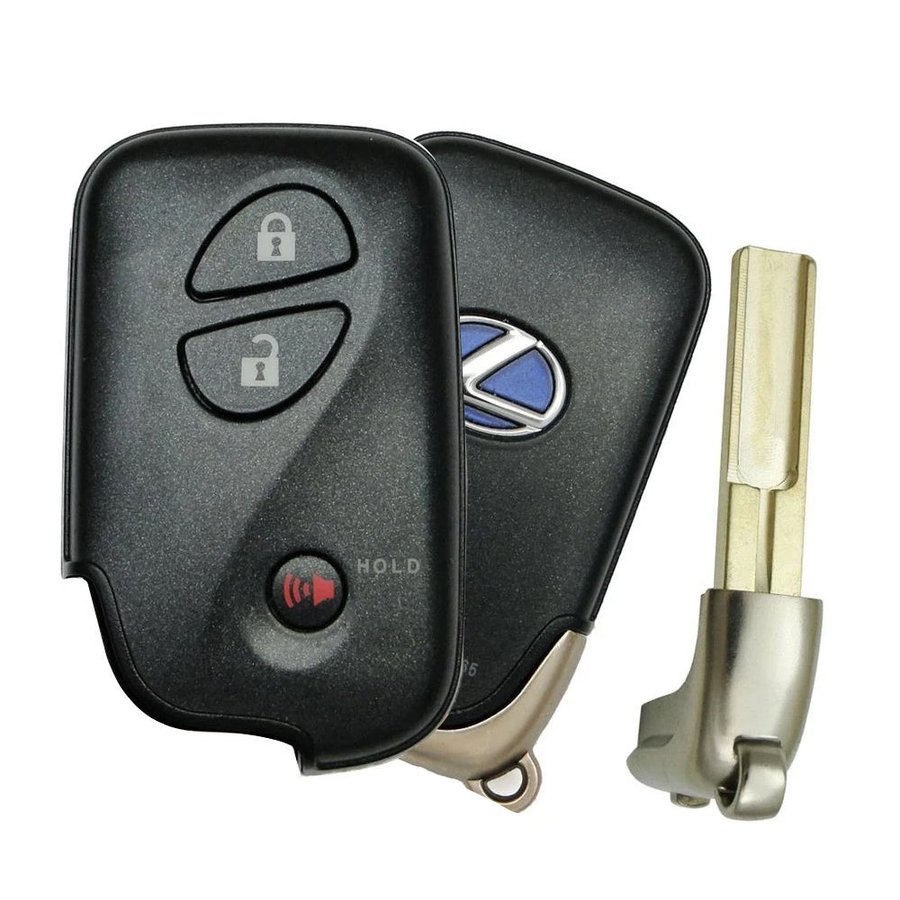

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQ14AAB | 2011–2012 | HYQ14AAB | 89904-76080 | Texas DST (4D-67) | 315 MHz | CR1632 | TOY48 |
| 315 MHz · HYQ14ACX | 2011–2017 | HYQ14ACX | 89904-48481 | TMS37126 DST-4D (Texas 4D-60 family, 80-bit) | 315 MHz | CR1632 | TOY48 |
| 433 MHz · 89904-48521 | 2011–2017 | n/a | 89904-48521 | TMS37126 DST-4D (Texas ID6B, 80-bit) | 433 MHz | CR1632 | TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus CT200h G chip smart key requires professional OBD tool — no self-programming procedure for proximity key transponder.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus G-chip (Texas 4D60 80-bit DST) smart key. CT200h 1st gen (2011-2017) — Toyota G-chip 4D60 era. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Hybrid vehicle: do not disconnect 12V auxiliary battery without proper HV service isolation.
- CT200h uses two different chip generations (4D-67 early / 4D60 late) — identify correct chip from existing key FCC label before programming.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus CT200h G chip smart key — professional tool mandatory.
- AKL for Lexus G chip typically needs dealer-issued PIN or EEPROM dump on some models — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify capability before booking.
Lockout
Door pick / decode: Lishi TOY48 (CW).
49 verified sources · Last verified: 2026-08-09
