Lexus ES 5th (XV40) (2007–2012) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY48
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

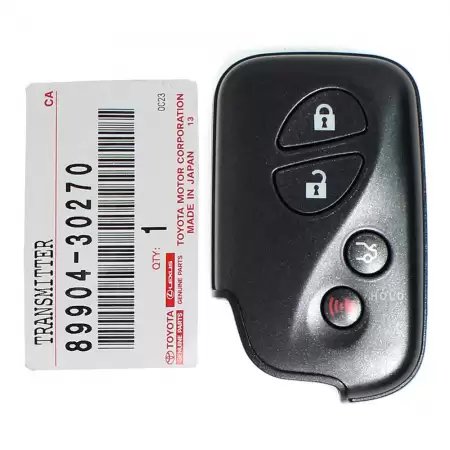

| 315 MHz · HYQ14AAB | 2007–2012 NA (board 0140 2007-2008 / E-board 3370 2009-2012) | HYQ14AAB | 89904-30270 / 89904-50380 | Texas ID 4D-67 (TMS37126 DST-4D, 80-bit) | 315 MHz | CR1632 | TOY48 (Lexus emergency insert) |
| 315 MHz · HYQ14AEM | 2011–2012 NA (GNE board 6601) | HYQ14AEM | 89904-30C60 | Texas ID 4D-67 (TMS37126 DST-4D, 80-bit) | 315 MHz | CR1632 | TOY48 |
| 433 MHz · 89904-30320 | 2007–2012 export (GCC/Middle East, China, Australia, Taiwan, South Korea) | n/a | 89904-30320 / 89904-53361 | Texas ID 4D-67 (TMS37126 DST-4D, 80-bit) | 433 MHz | CR2032 | TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus ES XV40 4D67 transponder requires a professional OBD tool — no self-programming procedure for the transponder chip.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus 4D67 dot chip smart key. ES XV40 (2007-2012) — 4D67 dot chip + early G-chip 4D72 transition late 2012. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus ES XV40 4D67 — professional tool mandatory.
- OBD AKL typically needs dealer-issued PIN (Toyota Techstream + NASTF) or EEPROM dump on some ES XV40 ECUs — confirm OBD AKL path before quoting.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify AKL capability on current firmware before booking.
Lockout
Door pick / decode: Lishi TOY48 (CW).
