Lexus GS 3rd (S190) (2006–2011) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY48

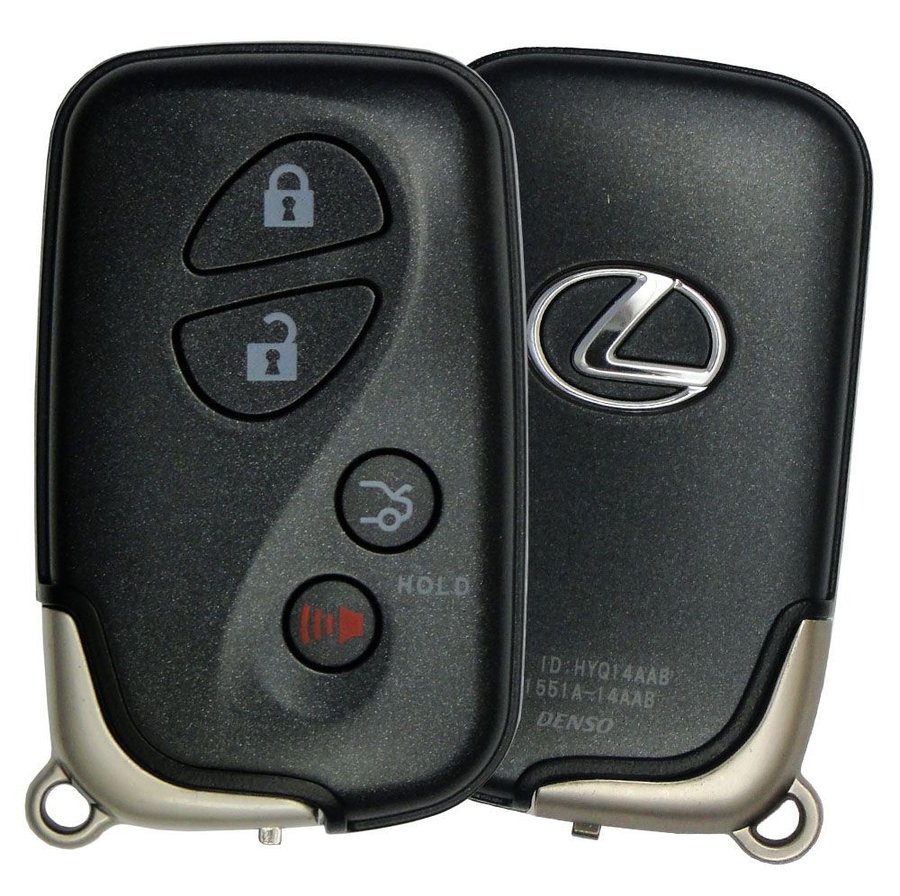

Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · 89904-30270 | 2006–2008 NA (early board 0140) | HYQ14AAB | 89904-30270 | Texas DST-4D (TMS37126, 4D-67/4D-60 80-bit) | 315 MHz | CR1632 | TOY48 |
| 315 MHz · 89904-50380 | 2009–2011 NA (late board 3370 / E-board) | HYQ14AAB | 89904-50380 | Texas DST-4D (TMS37126, 4D-60 80-bit) | 315 MHz | CR1632 | TOY48 |
| 433.92 MHz · 89904-30322 | 2006–2011 Europe + Australia + GCC/Middle East | n/a | 89904-30322 | Texas DST-4D (TMS37126) | 433.92 MHz | CR2032 | TOY48 |
| 312 MHz · 89904-30341 | 2006–2011 Japan domestic (JDM 312 MHz) | n/a | 89904-30341 | Texas DST-4D (TMS37126) | 312 MHz | CR1632 | TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus GS S190 4D67 transponder requires a professional OBD tool — no self-programming procedure for the transponder chip.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus 4D67 dot chip + G-chip smart key. GS S190 (2006-2011) — 4D67 dot chip + late G-chip 4D60 on 2010+ smart-key trims. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus GS S190 4D67 — professional tool mandatory.
- OBD AKL typically needs dealer-issued PIN (Toyota Techstream + NASTF) or EEPROM dump on some GS S190 ECUs — confirm OBD AKL path before quoting.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify AKL capability on current firmware before booking.
Lockout
Door pick / decode: Lishi TOY48 (CW).
75 verified sources · Last verified: 2026-08-09
