Lexus GX 2nd (GX460) (2010–2023) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY48
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

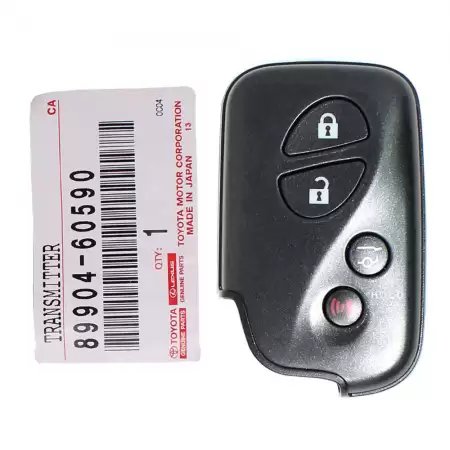

| 315 MHz · HYQ14ACX | 2010–2020 NA all trims | HYQ14ACX | 89904-60590 | TMS37126 DST-4D (Texas 4D60 family, 80-bit) | 315 MHz | CR1632 | TOY48 |
| 315 MHz · HYQ14FBF | 2019–2022 NA all trims | HYQ14FBF | 89904-60U80 | Texas DST-AES (H-8A) | 315 MHz | CR2032 | TOY48 |
| 315 MHz · HYQ14FBZ | 2021–2023 NA all trims | HYQ14FBZ | 8990H-60010 | Texas DST-AES (H-8A) | 315 MHz | CR2032 | TOY48 |
| 433 MHz · 89904-60U60 | 2010–2022 export (GCC, Middle East, Russia/CIS, Vietnam) | n/a | 89904-60U60 | Texas 4D67 | 433.92 MHz | CR2032 | TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus GX460 G/H chip smart key requires professional OBD tool — no self-programming procedure for proximity key transponder.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus mixed G-chip (4D60) + H-chip (DST-AES) smart key. GX460 (2010-2023) — G-chip 4D60 (HYQ14ACX) early; H-chip DST-AES (HYQ14FBF/FBZ) late. Identify FCC before ordering. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus GX460 G/H chip smart key — professional tool mandatory.
- AKL for Lexus G/H chip typically needs dealer-issued PIN or EEPROM dump on some models — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify capability before booking.
Lockout
Door pick / decode: Lishi TOY48 (CW).
