Lexus HS 250h 1st (AZM10) (2010–2012) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY48

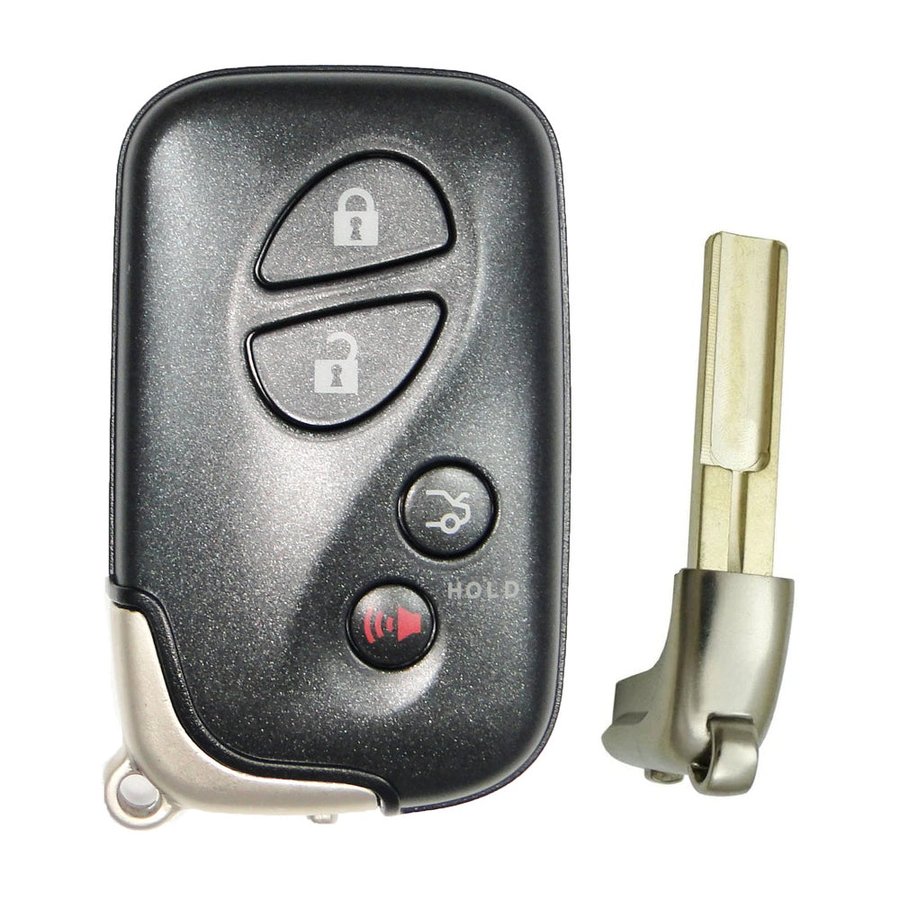

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQ14ACX | 2010–2012 NA (US only) | HYQ14ACX | 89904-75030 | TMS37126 DST-4D (Texas 4D60 family, 80-bit) | 315 MHz | CR1632 | TOY48 |
| 315 MHz · HYQ14AEB | 2010–2012 NA (US only) — factory card-key option | HYQ14AEB | 89994-48142 | 4D Plus DST-80 (Texas 4D60 family, 80-bit) | 315 MHz | CR2412 | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus HS 250h G chip (4D-60) smart key requires professional OBD tool — no self-programming procedure for proximity key transponder.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus G-chip (Texas 4D60 80-bit DST) smart key. HS250h AZM10 (2010-2012) — G-chip smart key, low-volume hybrid sedan. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Hybrid vehicle: do not disconnect 12V auxiliary battery without proper HV service isolation.
- HS 250h is a short-production model (2010-2012) — parts availability more limited; confirm blank availability before booking.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus HS 250h G chip smart key — professional tool mandatory.
- AKL for Lexus G chip typically needs dealer-issued PIN or EEPROM dump on some models — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify capability before booking.
Lockout
Door pick / decode: Lishi TOY48 (CW).
37 verified sources · Last verified: 2026-08-08
