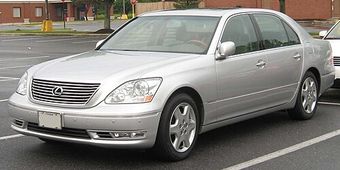

Lexus LS 3rd (UCF30) (2001–2006) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TOY48
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

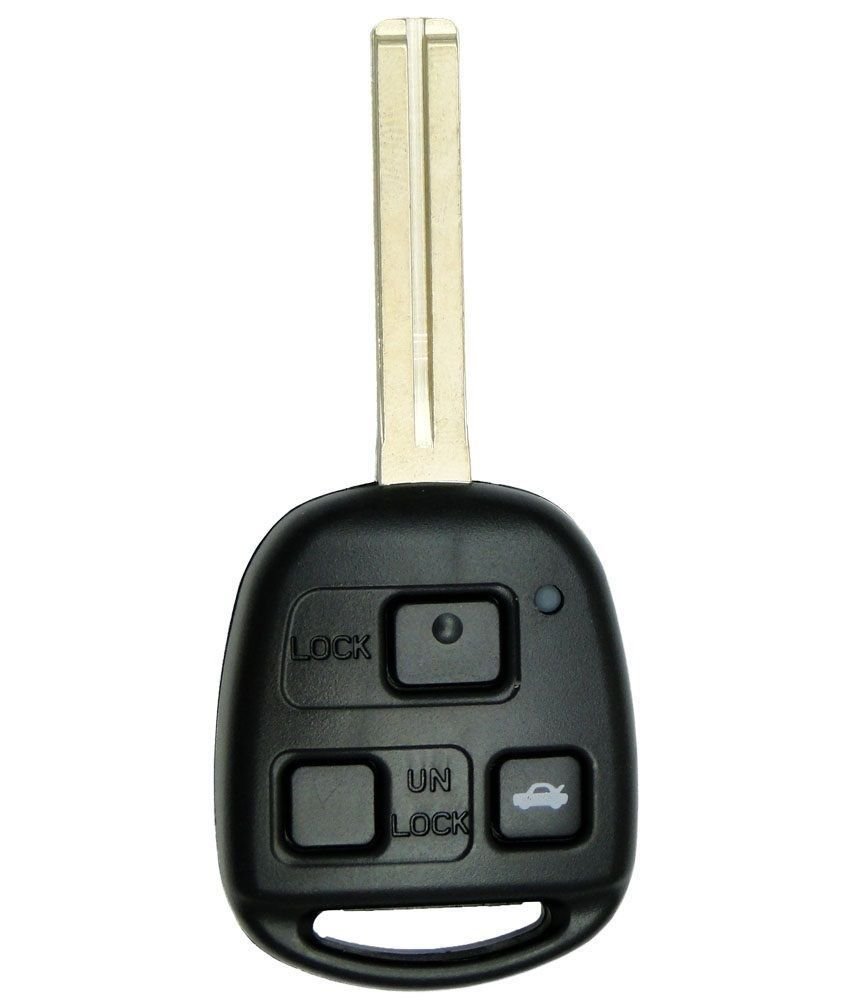

| 315 MHz · HYQ12BBK | 2001-2006 NA all trims (base system; also carried as backup on Smart Access cars) | HYQ12BBK | 89070-50660 | Texas ID 4D 68 | 315 MHz | CR1616 | TOY48 / LXP90 |
| 314 MHz · HYQ12BZE | 2003-2006 NA, Smart Access option | HYQ12BZE | 89994-50241 | Texas ID 4D 68 | 314 MHz | CR1632 | TOY48 |
| 433 MHz · 89994-50260 | 2004-2006 Europe / Australia / 433 MHz markets, Smart Access | n/a | 89994-50260 | Texas ID 4D 68 | 433.92 MHz | CR2032 | TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus LS430 UCF30 4D68 transponder requires a professional OBD tool — no self-programming procedure for the transponder chip.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus 4D68 chip smart key. LS430 UCF30 (2001-2006) — 4D68 era; pre-G/H smart key. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- This model has two distinct key systems: standard remote head key (HYQ12BBK) and Smart Access proximity key (HYQ12BZE) — confirm which system the vehicle has before starting. Smart Access vehicles require the correct 4-button smart key blank.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus LS430 UCF30 4D68 — professional tool mandatory.
- OBD AKL typically needs dealer-issued PIN (Toyota Techstream + NASTF) or EEPROM dump on some LS430 ECUs — confirm OBD AKL path before quoting.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify AKL capability on current firmware before booking.
- Smart Access-equipped LS430 (2003-2006): confirm whether vehicle uses standard remote (HYQ12BBK) or Smart Access proximity system (HYQ12BZE) — they are not interchangeable.
Lockout
Door pick / decode: Lishi TOY48 (CW).
57 verified sources · Last verified: 2026-08-09
