Lexus IS 3rd (XE30) (2014–2021) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY2

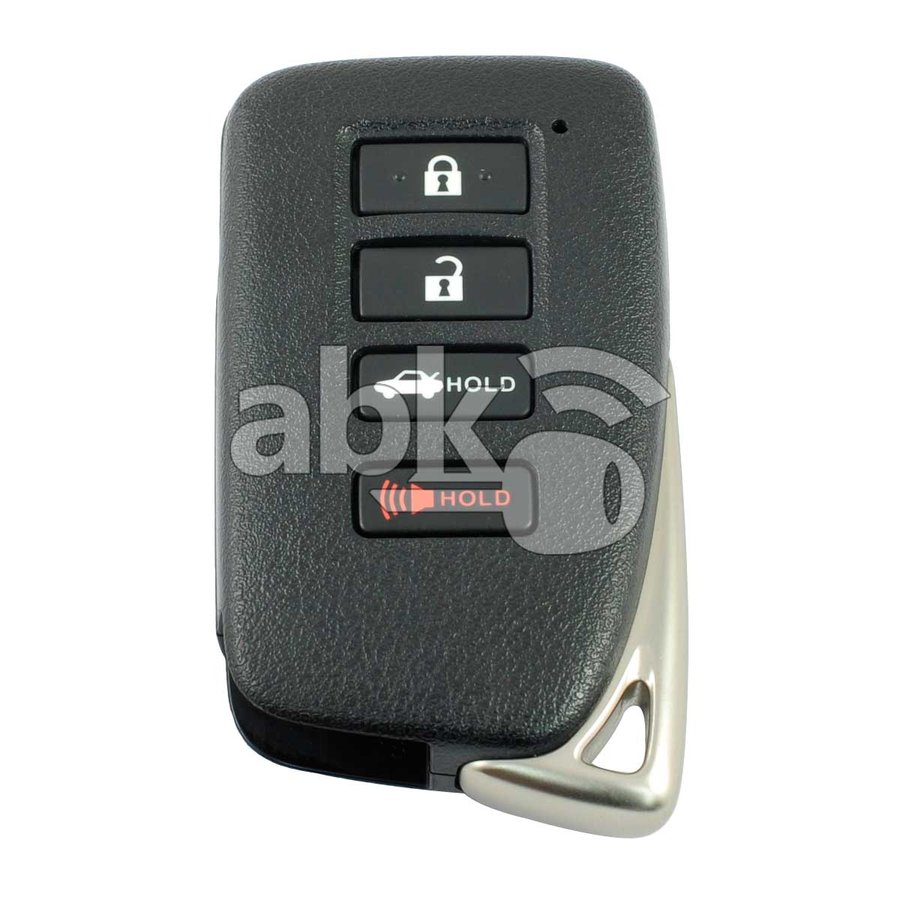

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQ14FBA | 2014–2019 NA | HYQ14FBA | 89904-53651 | Texas DST-AES (88A / H-8A) | 315 MHz | CR2032 | TOY48 |
| 315 MHz · HYQ14FLB | 2020–2021 NA | HYQ14FLB | 89904-53E70 | Texas DST-AES (H-8A) PAGE1 A9 | 315 MHz | CR2032 | TOY48 (LXP90) |
| 433 MHz · 89904-53831 | 2013–2020 EU · 2013–2021 AU · GCC export | n/a | 89904-53831 | Texas DST-AES (8A / 128-bit AES) | 433 MHz | CR2032 | TOY48 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus IS XE30 H chip (DST-AES) smart key requires professional OBD tool — no self-programming procedure for proximity key transponder.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus H-chip (Texas DST-AES Page1 H) smart key. IS XE30 (2014-2021) — H-chip smart key. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Two FCC generations span this case — HYQ14FBA (2014-2019) and HYQ14FLB (2020-2021). Keys are NOT interchangeable. Identify from existing key FCC label.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus IS XE30 H chip smart key — professional tool mandatory.
- AKL for Lexus H chip typically needs dealer-issued PIN or EEPROM dump on some models — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify capability before booking.
Lockout
Door pick / decode: Lishi TOY2 (CW).
