Lexus GX 1st (GX470) (2003–2009) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TOY48

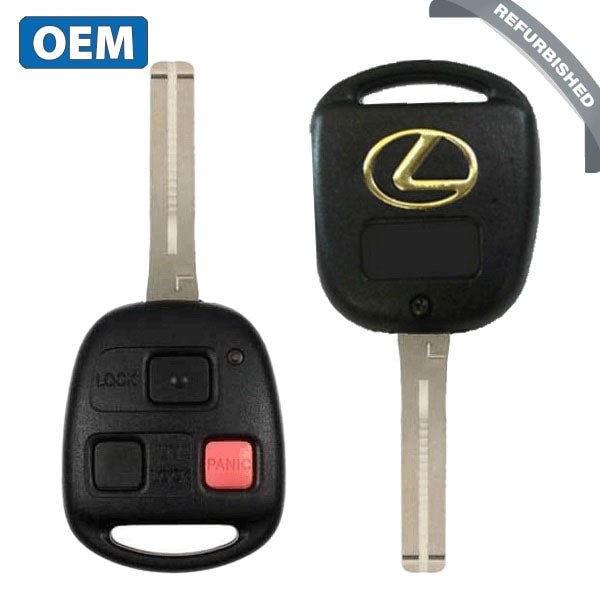

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQ1512V | 2003–2009 | HYQ1512V | 89070-60801 | Texas ID 4D68 | 315 MHz | CR1616 | TOY48 / LXP90 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Lexus GX470 4D68 transponder requires a professional OBD tool — no self-programming procedure for the transponder chip.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Lexus 4D68 chip smart key. GX470 (2003-2009) — Toyota 4D68 era; manual pedal-dance with master may work. Newer-era H-chip/8A on Autel needs IMKPA token (~$5-15/session). Lonsdor K518 USA + Honda/Toyota AES module covers G/H/8A natively. Xhorse VVDI Key Tool Plus needs 2024+ firmware for H-chip. Standard 16-pin DLC OBD path; no XP400 PRO bench, no APB112 simulator needed for OBD enrolment.
- Post-2024 Autel US firmware: Toyota/Lexus add-key may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Lexus GX470 4D68 — professional tool mandatory.
- OBD AKL typically needs dealer-issued PIN (Toyota Techstream + NASTF) or EEPROM dump on some GX470 ECUs — confirm OBD AKL path before quoting.
- Post-2024 Autel US firmware: Toyota/Lexus AKL reportedly restricted per TMNA — verify AKL capability on current firmware before booking.
Lockout
Door pick / decode: Lishi TOY48 (CW).
27 verified sources · Last verified: 2026-08-09
