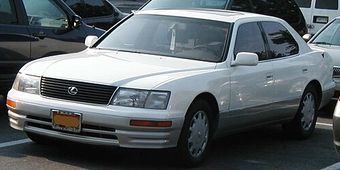

Lexus LS 2nd (UCF20) (1995–2000) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TOY48

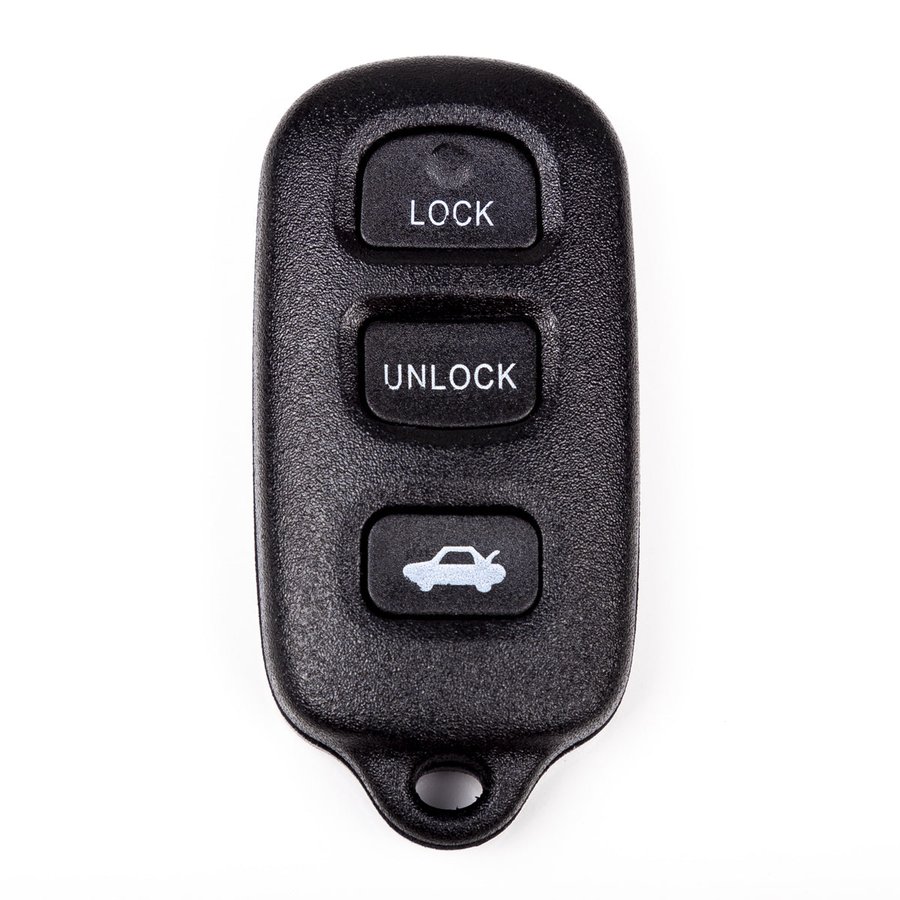

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · HYQWDT-C | 1995-1997 | HYQWDT-C | 89742-50510 | none | 314.3 MHz | CR2032 | n/a |
| 315 MHz · HYQ1512V | 1997-2000 | HYQ1512V | 89070-50170 | Texas 4C | 315 MHz | CR1616 | TOY48 / LXP90 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: 4C master key required.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Toyota 4C transponder does not support manual self-programming. Professional OBD tool or transponder cloner required.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Toyota TI 4C / Crypto-1 chip (early Lexus IMMO era). LS400 UCF20 (1995-2000) — pre-OBD2 1995, OBD2-equipped 1996+. Master/valet key system with pedal-dance manual programming via existing master key. Professional aftermarket tool with 4C OBD support required. Standard 16-pin DLC sufficient on Autel/Lonsdor/Xhorse (no IMKPA token, no XP400 PRO bench needed).
- Post-2024 Autel US firmware: Toyota add-key may be affected by TMNA restrictions.
- Existing working key required for add-key procedure on most tools.
- Lexus LS ucf20 1995-1996: no transponder chip (LXP90-P non-transponder blade). LS ucf20 1997-2000: Texas 4C chip (LXP90). Verify year and chip before programming.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- Texas 4C AKL: many tools require EEPROM dump from the immobiliser ECU for all-keys-lost recovery.
- Post-2024 Autel US firmware: Toyota AKL may be affected by TMNA restrictions.
Lockout
Door pick / decode: Lishi TOY48 (CW).
44 verified sources · Last verified: 2026-08-09
