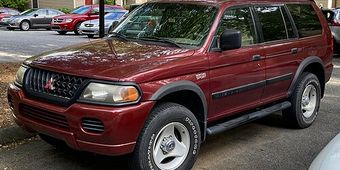

Mitsubishi Montero Sport 1st generation (1997–2004) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- MIT8
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · E4EG8D-522M-A | 1997-1999 for the mechanical MIT4 ignition key (pre-immobiliser run; MY2000 is the MIT8-PT transponder cutover — verify chip presence on a 2000 truck before quoting a plain blade); the E4EG8D-522M-A keyless-entry fob is 1999-2000 (Omron grant 1999-04-09) + EU/UK Shogun Sport export | E4EG8D-522M-A | MR587977 | none | 315 MHz | CR2032 | MIT4 |

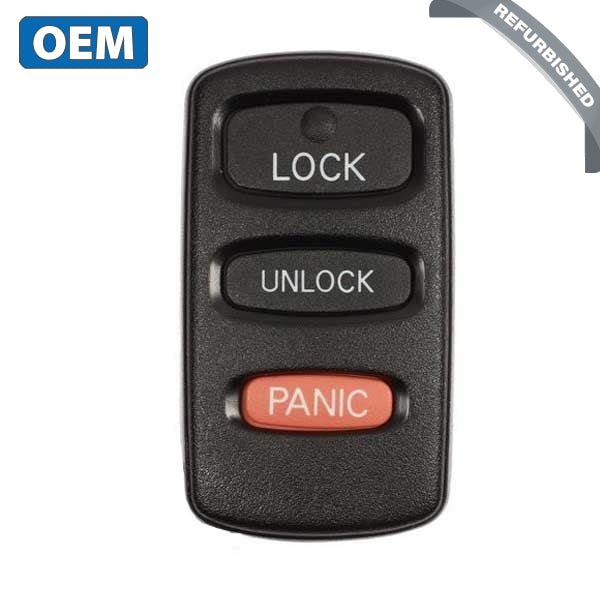

| 315 MHz · OUCG8D-522M-A | 2001-2004 transponder era. The 4D61 transponder ignition key runs the whole 2001-2004 span; the remote fob documented here (MR587983 / OUCG8D-525M-A) is listed by retailers for Montero Sport 2004-2005 — 2001-2003 cars take the MR587977 / MR587978 remote on FCC OUCG8D-522M-A / E4EG8D-522M-A. | OUCG8D-525M-A | MR587983 | none | 315 MHz band (FCC grant tested at 313.85 MHz) | CR2032 | MIT1 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · No DTC scan needed.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Mitsubishi Montero Sport (1997-2004) is pre-immobilizer — no transponder chip. The blade alone starts the vehicle. Locksmith cuts to OEM code from VIN or existing key. No chip-programming tools needed. Remote (if equipped) learned via in-vehicle key sequence per OEM service manual.
- Key/remote: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Autel IM608 Pro II + IMKPA can reprogram remote-function radio for pre-immobilizer cars if equipped. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT applicable to mechanical-only chassis.
- Verify chip before booking (this chassis facelift): mechanical-only pre-immobilizer chassis. Some 1996-1999 facelift versions added transponder mid-cycle — confirm key has no chip with Lonsdor K518 reader before quoting.
- Mitsubishi Montero Sport pre-immobilizer — no chip-level AKL. Mechanical AKL via lock cylinder rekey or new ignition cylinder if lost lock.
- Bring ALL replacement remotes (if equipped) before starting in-vehicle programming sequence.
- No professional tool needed for blade — only locksmith cut. Remote-only AKL via in-vehicle key dance.
Lockout
Door pick / decode: Lishi MIT8 (CW).
58 verified sources · Last verified: 2026-08-09
