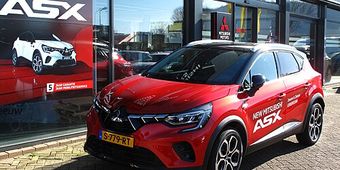

Mitsubishi RVR / ASX 4th generation (2023–2025) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- MIT11
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

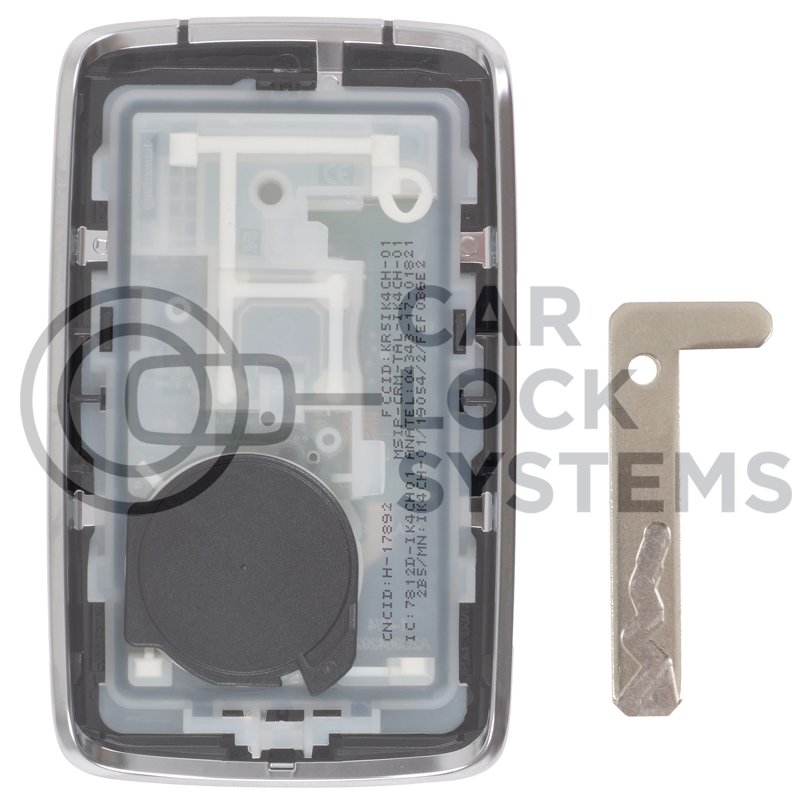

| 433 MHz · 285979827R | 2023–2025 (Europe from 2023; Australia from 2025) | n/a | 285979827R | NCF29A (HITAG AES / ID4A) | 433 MHz | CR2032 | VA2 (insert emergency key) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Renault dealer PIN / lonsdor.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear IMMO/BCM DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Mitsubishi RVR/ASX 4, 2023-2025) is EU-only Mitsubishi but mechanically a rebadged Renault Captur (CMF-B platform) — uses Renault HITAG-AES Megamos IMMO, NOT Mitsubishi 4A. Autel IM608 II + Lonsdor K518 Renault packages should apply. Verify Renault menu coverage (NOT Mitsubishi menu) before quoting.
- BCM access required: remove glove box (RHD) or work under steering column (LHD).
- Internet connection required for Autel tablet during programming.
- RVR/ASX 4 (2023+) is newest gen. Chip may be Mitsubishi 4A or Renault-equivalent depending on market. confirm with reader before ordering blank.
- Mitsubishi 4A AKL: 40-pin BCM cable MANDATORY. BCM gray connector disconnect + in-line cable required to bypass PIN lockout.
- AKL flow takes 10-15 min total. Battery support strongly recommended.
- Min 2 new OEM smart keys required for AKL.
- After AKL: reconnect BCM gray connector, reinstall glove box if removed.
- RVR/ASX 4: chip family verification critical before AKL — wrong tool may immo-lockout.
Lockout
Door pick / decode: Lishi MIT11 (CW).
7 verified sources · Last verified: 2026-08-06
