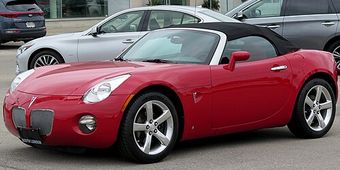

Pontiac Solstice 1st generation (2006–2010) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

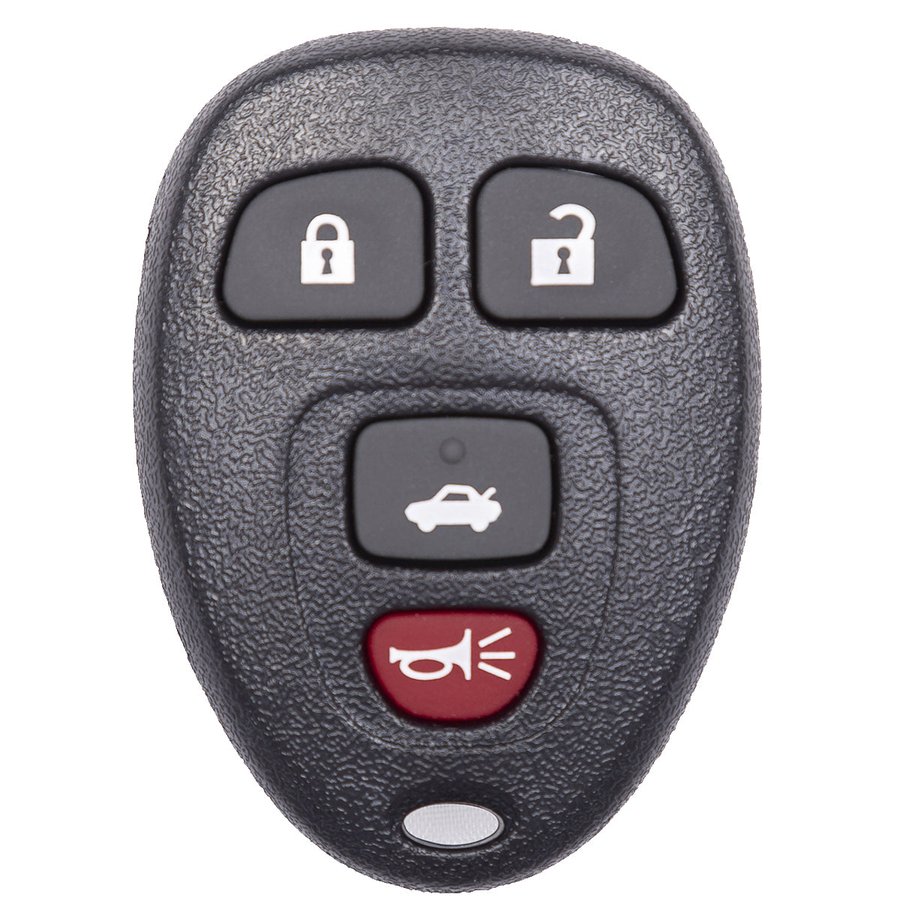

| 315 MHz · KOBGT04A | 2006–2010 (all trims incl. GXP) | KOBGT04A | 15252034 | none | 315 MHz | CR2032 | n/a |
| transponder · B111-PT | 2006–2010 (all trims incl. GXP) | n/a | 23372322 | NXP/Philips ID46 GM "Circle Plus" (PK3, crypto) | n/a | n/a | B111-PT |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518/tech2.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Pontiac Solstice, 2006-2010) spans GM PK3+ Circle+ rolling-code era — uses GM Kappa 2-seat roadster platform shared with Saturn Sky. Pontiac killed during recession; final 2010 build year. 4-digit GM security PIN REQUIRED. Sources: NASTF VSP, AllData on-demand, GM Tech2 dealer.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CCW).
30 verified sources · Last verified: 2026-08-06
