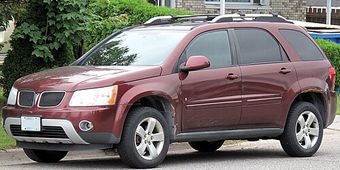

Pontiac Torrent 1st generation (2006–2009) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111

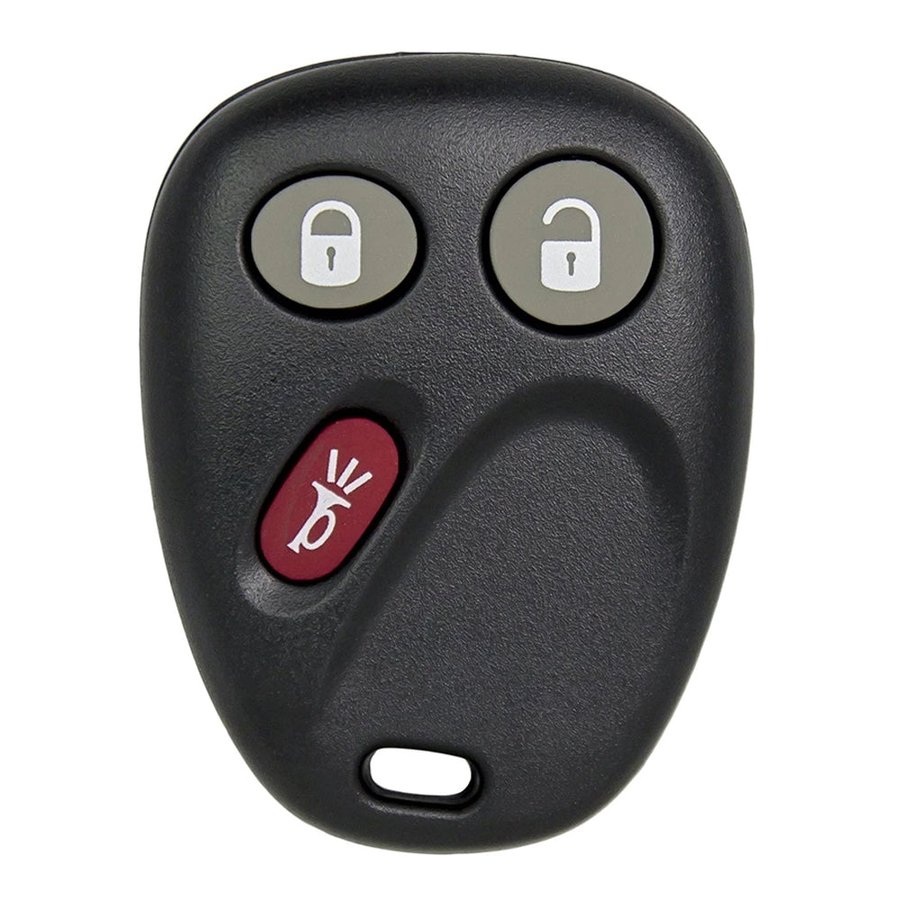

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LHJ011 | 2006 | LHJ011 | 21997127 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · OUC60270 | 2007–2009 | OUC60270 | 20952474 | none | 315 MHz | CR2032 | n/a |
| PK3 ID46 · B111-PT | 2006–2009 | n/a | 23372322 | NXP/Philips ID46 (PK3 / Pass-Key III+ "Circle Plus") | n/a | none | B111-PT |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518/tech2.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Pontiac Torrent, 2006-2009) spans GM PK3+ Circle+ rolling-code era — uses GM Theta crossover platform shared with Chevrolet Equinox and Suzuki XL-7. 4-digit GM security PIN REQUIRED. Sources: NASTF VSP, AllData on-demand, GM Tech2 dealer, K518 built-in PIN list.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CCW).
50 verified sources · Last verified: 2026-08-06
