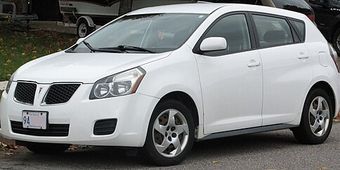

Pontiac Vibe 1st / 2nd (2003–2010) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- TOY43
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

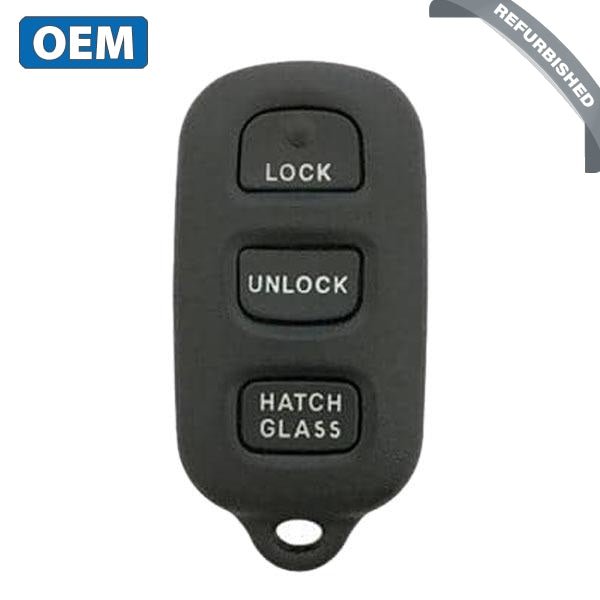

| 315 MHz · GQ43VT14T | 2003-2008 (E130, 1st gen) | GQ43VT14T | 88969657 | none | 315 MHz | CR2032 | n/a |
| transponder · TOY43 4D67 | 2003–2010 (E130 all trims; E140 2009–2010 base trims without RKE) | n/a | 89785-08020 | Texas 4D67 (ID67) | n/a | n/a | TOY43 |
| 315 MHz · GQ4-29T | 2009-2010 (E140, 2nd gen) | GQ4-29T | 89070-0T030 | Texas 4D67 (ID67) | 315 MHz | CR2016 | TOY43 (TR47) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/lonsdor/dealer (AKL).
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Pontiac Vibe, 2003-2010) is the NUMMI joint-venture spans Toyota Matrix badge-engineered Toyota Matrix E130/E140 — uses Toyota Texas 4D67 chip and TOY43 blade. Use TOYOTA menu in Autel/Xhorse/Lonsdor tools (not GM/Pontiac menu). On-board 4D67 OBP cycle with existing key + new key sequence; Lonsdor K518 + Toyota OBP cable for AKL.
- 2003-2008: Toyota 4D67/4D68. 2009-2010: Toyota G key smart system.
Lockout
Door pick / decode: Lishi TOY43 (CW).
51 verified sources · Last verified: 2026-08-10
