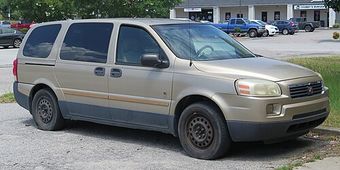

Saturn Relay 1st generation (2005–2007) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

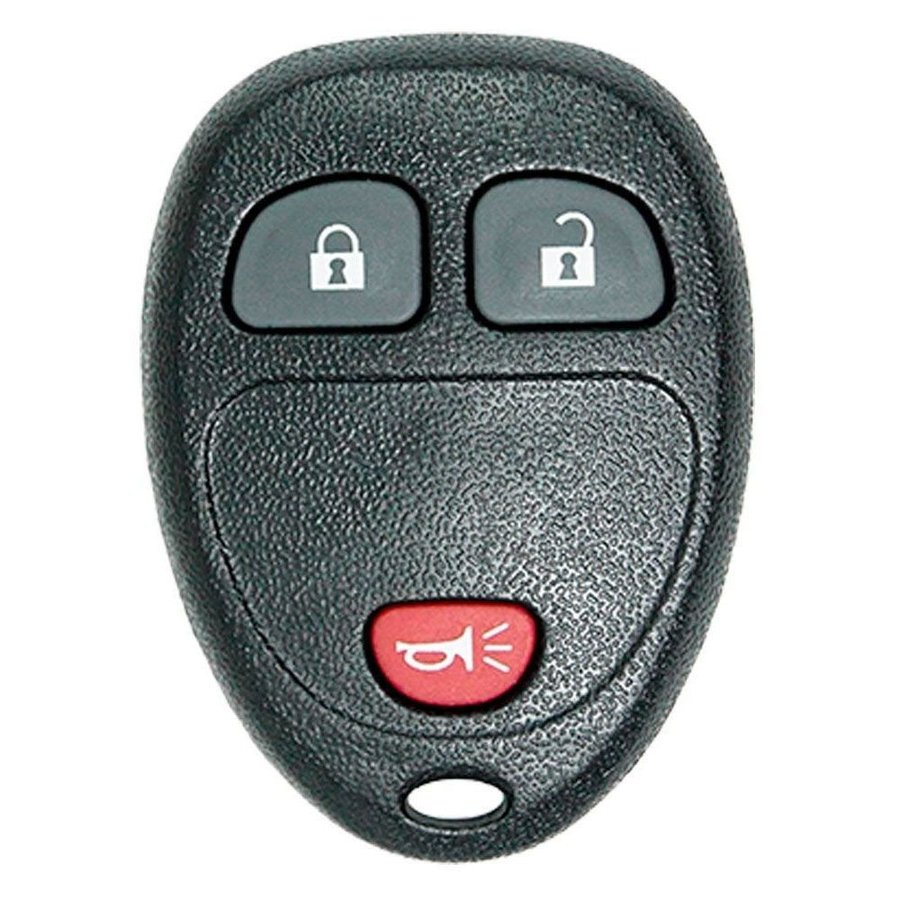

| 315 MHz · KOBGT04A | 2005–2007 NA all trims | KOBGT04A | 15777636 | none | 315 MHz | CR2032 | n/a |
| TRANSPONDER_NO_RF · B97-PT Megamos ID13 | 2005–2007 NA all trims | n/a | 88891799 | Megamos ID13 (PK3) | n/a | n/a | B97-PT |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: NASTF/dealer/AllData (PK3+).
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Saturn Relay 2005-2007) spans GM Passlock → PK3+ transition era on GM U-body minivan platform. Verify chip before ordering blanks: pre-2006 typically Passlock pellet, 2006+ often PK3+ chip. Passlock = on-board 30-min relearn (no PIN). PK3+ = NASTF/dealer/AllData PIN required.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B111 (CCW).
32 verified sources · Last verified: 2026-08-05
