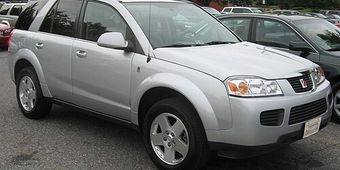

Saturn Vue 1st generation (2002–2007) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B102

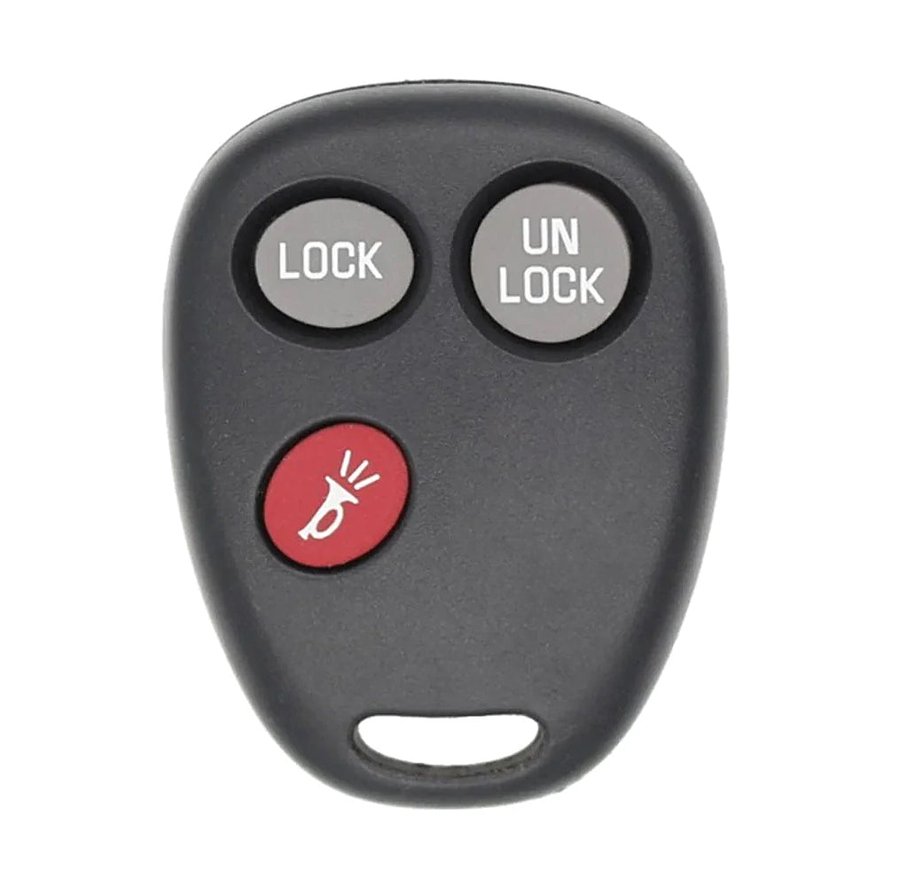

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LHJ009 | 2002–2003 (early Theta production) | LHJ009 | 22693421 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · LHJ011 | 2004–2007 (Theta refresh) | LHJ011 | 21997127 | none | 315 MHz | CR2032 | n/a |
| mechanical · B96 / P1110 | 2002–2007 (all trims, including J35A3 Honda-engined V6 — immobiliser is GM) | n/a | n/a | none | n/a | n/a | B96 / P1110 (Ilco-EZ B96, Ilco P1110, Jet B-96-NP, JMA GM-40) — plain double-sided GM/Saturn blank |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN - Passlock relearn.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Saturn Vue 1st gen 2002-2007) spans the GM Passlock era — uses resistor pellet (not transponder chip). On-board 30-minute relearn cycle with stable 12V+ battery is the standard path. NO PIN required for Passlock learn — battery support strongly recommended for the 30+ min cycle.
- AKL via on-board cycle works — Passlock has no "all keys lost" lockout. No special tool needed if 30+ min available.
Lockout
Door pick / decode: Lishi B102 (CW).
50 verified sources · Last verified: 2026-08-10
