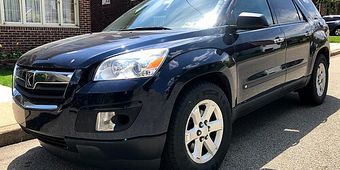

Saturn Outlook 1st generation (2007–2010) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

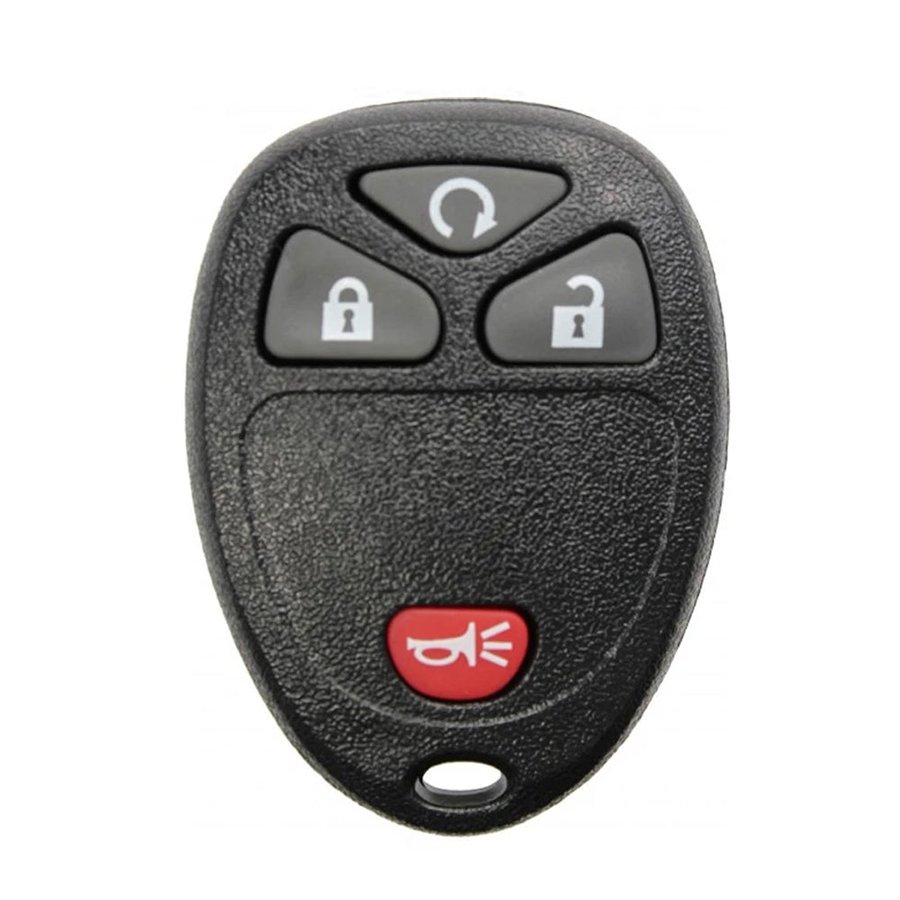

| 315 MHz · OUC60270 | 2007–2010 | OUC60270 / OUC60221 | 22936101 / 20952477 | none | 315 MHz | CR2032 | n/a |
| PK3 ID46 · B111-PT | 2007–2010 | n/a | 15824471 | PK3 ID46 (Philips/NXP Circle Plus) | n/a | n/a | B111-PT (Z keyway) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518/tech2.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration. NASTF credentials for PIN lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Saturn Outlook 2007-2010) spans GM PK3+ Circle+ rolling-code era — uses GM Lambda 3-row crossover platform with PK3+ IMMO. 4-digit GM security PIN REQUIRED. Sources: NASTF VSP database, AllData on-demand lookup, GM Tech2 dealer, K518 built-in PIN list, Tech Authority subscription.
- On-board 10-min cycle works on SOME early PK3 (not PK3+ rolling-code) — verify if attempting that path.
- Outlook 1 YAML chip data incomplete — confirm with reader; should be PK3+ ID46.
- PIN sources: NASTF (preferred), AllData, dealer with proof of ownership.
- AKL erases existing key registrations — bring minimum 2 new key blanks.
Lockout
Door pick / decode: Lishi B111 (CCW).
26 verified sources · Last verified: 2026-08-10
