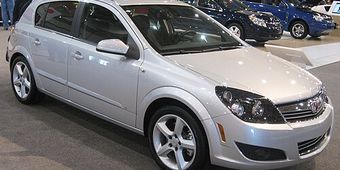

Saturn Astra 1st generation (2008–2009) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- HU100
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

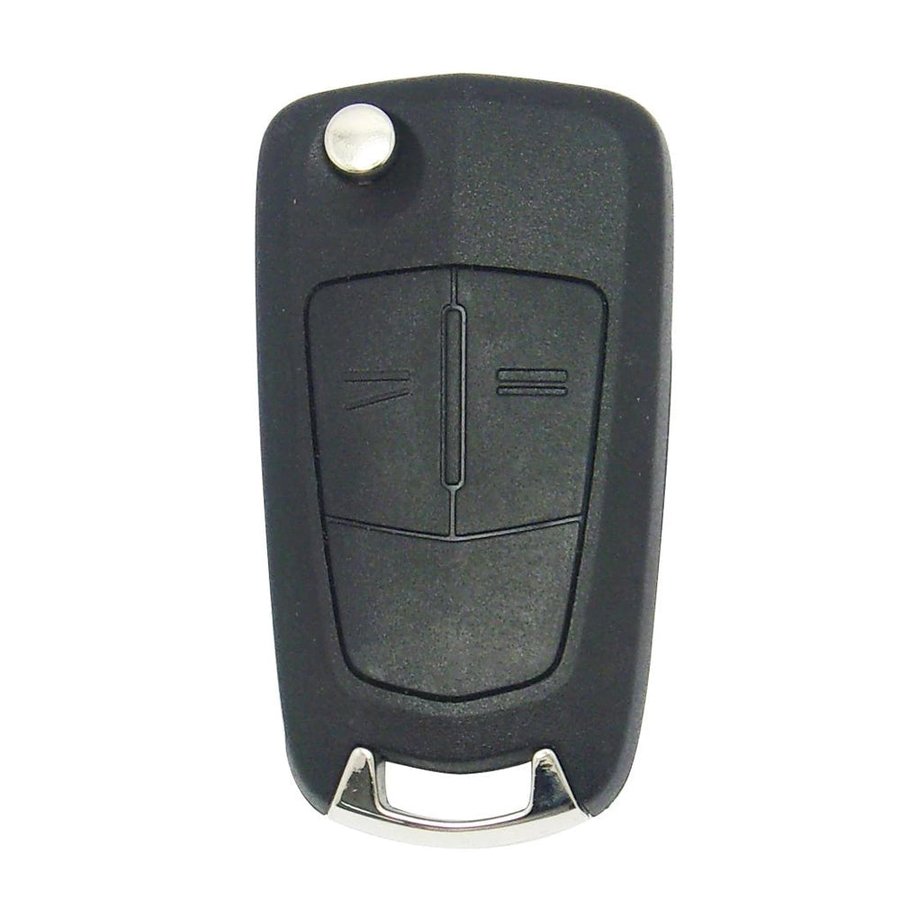

| 315 MHz · N5F736744-A | 2008-2009 NA (US + Canada) | N5F736744-A | 93192428 | Philips ID46 (GM Circle+ / PCF7941) | 315 MHz | CR2032 | HU100 (integrated flip) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — GM PIN: NASTF/dealer/AllData.
- Online / server access: required — NASTF / AllData PIN lookup.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · 12V+ battery support · Clear BCM/IMMO DTCs.
- Bring: Photo ID + vehicle registration. NASTF credentials for PIN lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- GM PK3+ (Circle+) requires 4-digit GM security PIN. This chassis (Saturn Astra / Opel Astra H) spans both Americas and European markets — NASTF VSP covers North American VINs; European dealers use separate PIN lookup. Obtain NASTF / dealer / Tech2 PIN BEFORE arriving on-site.
- On-board 10-min cycle works on SOME early PK3 (not PK3+ rolling-code) — verify chip before attempting that path.
- GM PK3+ AKL: PIN MANDATORY. No on-board AKL path exists for PK3+ rolling-code.
- PIN sources: NASTF (preferred), AllData, dealer with proof of ownership.
- AKL erases existing key registrations — bring minimum 2 new key blanks.
Lockout
Door pick / decode: Lishi HU100 (CCW).
20 verified sources · Last verified: 2026-08-05
