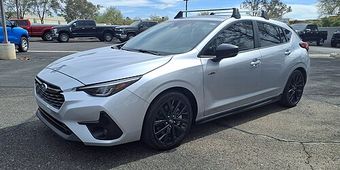

Subaru Impreza 6th generation (2024–2025) — Key Programming Reference
- Difficulty
- hard

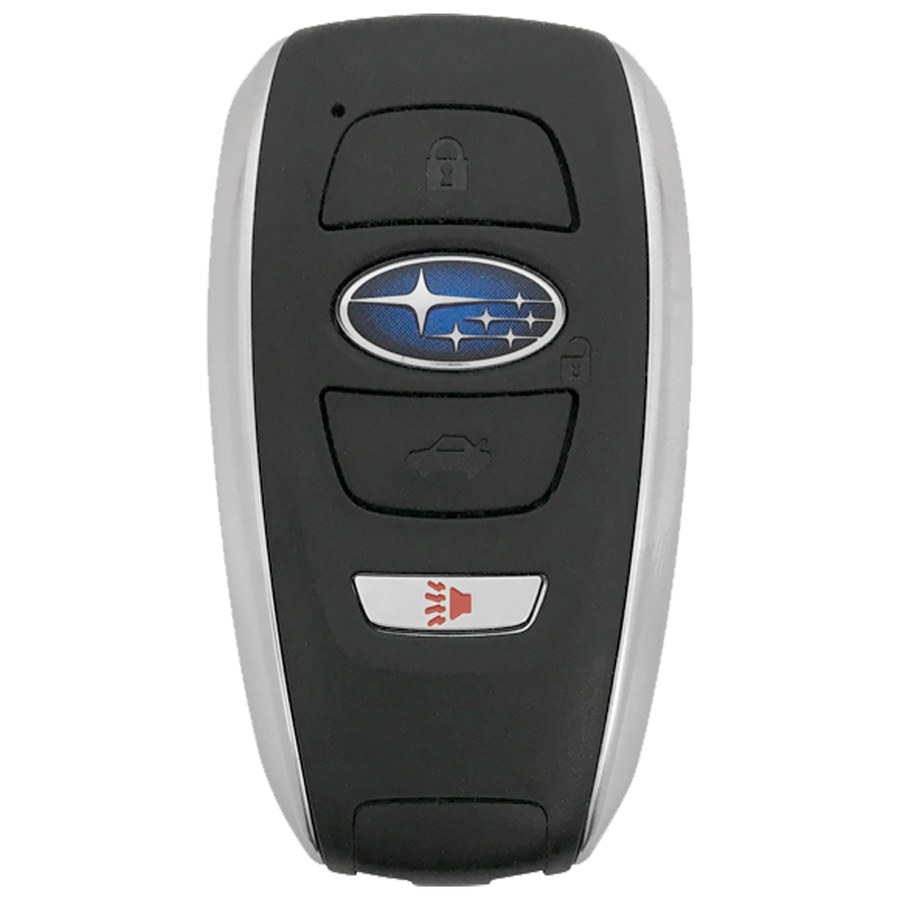

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 433.92 MHz · HYQ14AKB | 2024–2026 NA (US/CA); EU continental e-Boxer from Jan 2024; JDM from 2023; AU from late 2023 | HYQ14AKB | 88835XC00A | Texas ID H-8A (DST-AES 128-bit) | 433.92 MHz | CR2032 | TOY51 (emergency insert) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN required.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Subaru Texas DST-AES 8A smart key IMMO requires OBD diagnostic tool.
- On site: engine off · Maintain 12V+ · Clear IMMO/BCM DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- No external PIN required for Subaru Texas DST-AES 8A add key. Autel/Smart Pro reads IMMO data internally via OBD.
- No internet required for Autel add key on Subaru Texas DST-AES 8A. Smart Pro ADS2255/ADS2330 requires WiFi for AD server.
- Subaru smart system limit: maximum 4 keys per vehicle. If 4 already programmed, one must be erased before adding new key.
- No external PIN required for Subaru Texas DST-AES 8A AKL.
- No internet required for Autel + APB112 AKL on Subaru Texas DST-AES 8A. Smart Pro requires WiFi for AD server.
- Subaru AKL on G-key / 8A proximity requires APB112 simulator (Autel) OR ADC2015 emulator cable (Smart Pro). Verify tool + accessory before scheduling.
- Min 2 new smart keys recommended for AKL.
- AKL erases all existing key registrations — any lost keys will not be retrievable.
Lockout
air wedge + long reach
24 verified sources · Last verified: 2026-08-06
