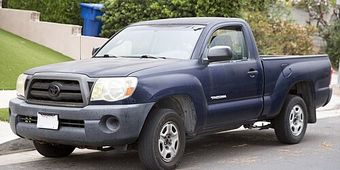

Toyota Tacoma 2nd generation (2005–2015) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- TOY43AT
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

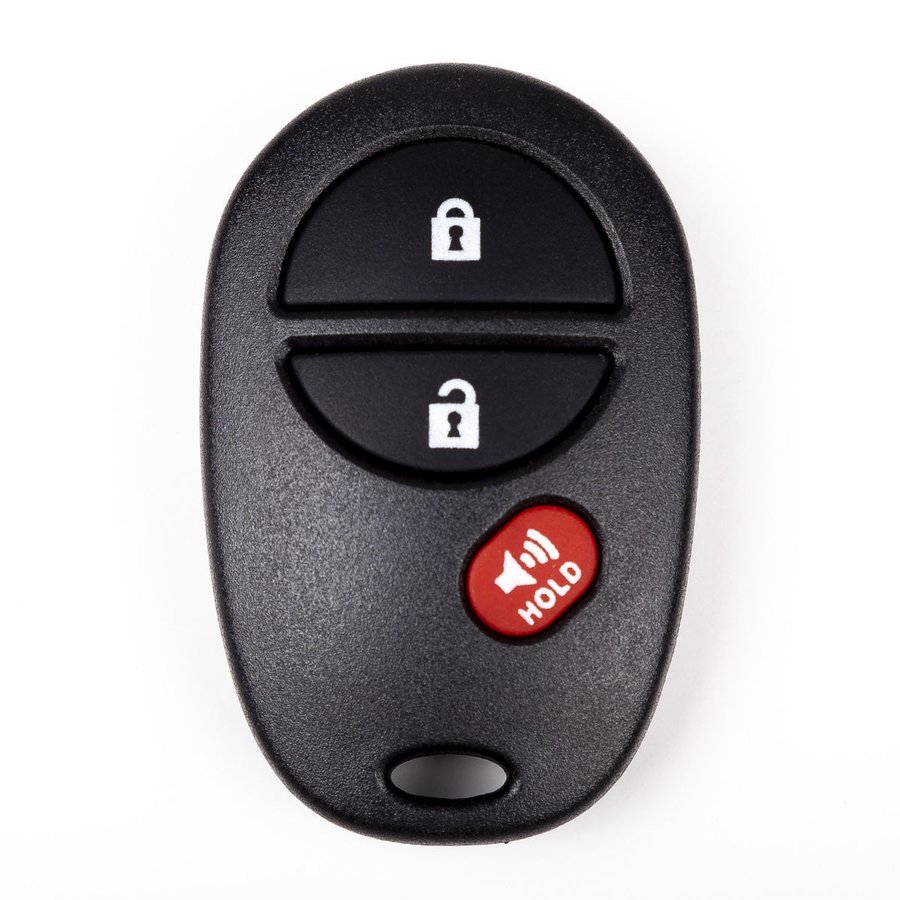

| 315 MHz · GQ43VT20T | 2005–2015 NA — all 2nd-gen Tacoma trims with factory keyless entry | GQ43VT20T | 89742-AE010 | none | 315 MHz | CR2032 | n/a |
| 4D67 · 89785-60160 | 2005–2009 NA — first 5 model years of 2nd generation | n/a | 89785-60160 | Texas 4D67 (dot chip, 2nd-gen Toyota immobilizer, 64-bit fixed code) | n/a | n/a | TR47 (Silca TOY44D, aftermarket TOY44D-PT) |
| 4D72G · 89785-08040 | 2010–2015 NA — second half of 2nd generation | n/a | 89785-08040 | Texas 4D72G (G-chip, 80-bit, upgraded Toyota immobilizer) | n/a | n/a | TR47 (Silca TOY44G, aftermarket TOY44G-PT) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — on-board OBP cycle.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Toyota Tacoma 2nd gen 2005-2015) spans Texas 4D67 → G-chip 4D72G chip transition — 2005-2010 typically 4D67, 2011-2015 typically G-chip 4D72G. Verify chip before ordering blanks. Tech Stream or K518 + Toyota OBP cable for on-board programming.
- 2005–early 2015: Texas 4D67 chip. Some 2015+ trims upgraded to Texas G chip (4D72) — confirm chip type before starting.
- Variant 0 (GQ43VT20T fob) has chip=none — no IMMO programming needed for the remote fob alone. Transponder key (variants 1–2) requires IMMO tool.
- Post-2024 Autel US firmware: Toyota add-key function may be affected by TMNA restrictions — verify on current firmware.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- OBD AKL can require dealer-issued PIN (Toyota Techstream + NASTF) or EEPROM dump on some Tacoma 2nd gen ECUs — confirm OBD path before quoting AKL job.
- Post-2024 Autel US firmware: Toyota AKL reportedly restricted per TMNA request — verify AKL capability on current firmware before booking.
Lockout
Door pick / decode: Lishi TOY43AT (CW).
74 verified sources · Last verified: 2026-08-10
