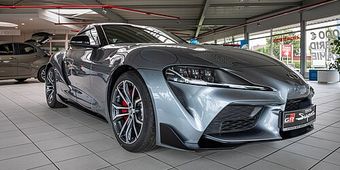

Toyota Supra 5th (A90) (2020–2026) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- TOY43AT
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 434 MHz · N5F-ID21A | 2020–2026 NA MY (2019–2026 worldwide) — full A90 generation, all trims, all markets | N5F-ID21A | 8812470-01 | ID49 HITAG PRO | 433.92 MHz | CR2032 | HU100R |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Toyota cloud seed-code.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Toyota GR Supra ID49 BMW smart/remote key requires professional OBD tool — no self-programming procedure.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Toyota GR Supra (2020-2026) is the BMW G29 Z4 platform under a Toyota body — HITAG-PRO ID49 (PCF7953V) with BMW FEM/CAS4+ immobilizer. Aftermarket flow requires Autel G-Box bench EEPROM dump + Xhorse VVDI Mini Prog or Lonsdor BMW Adapter for ISN extraction. Not the standard Toyota OBD path.
- Smart proximity key: ensure existing key fob battery is functional before starting.
- Verify chip before booking: H-chip vs G-chip vs 4A AES generations share a fob shell but use different cryptosystems — confirm transponder ID from a working key with Lonsdor K518 reader before quoting.
- BMW-platform tool kit: Autel G-Box bench EEPROM is mandatory for FEM/CAS4+ ISN extraction. Xhorse VVDI Mini Prog handles BMW EWS/CAS bench. APB112 simulator + LKE Smart Key Emulator NOT applicable — this is not a Toyota OBD flow. XP400 PRO useful for backup EEPROM dump.
- All existing keys erased. Bring ALL replacement keys before starting — minimum 2.
- No manual AKL for Toyota GR Supra ID49 BMW smart key — professional tool mandatory.
- AKL for Toyota/Lexus ID49 BMW typically needs dealer-issued PIN or seed-code cloud calc — confirm OBD AKL path before quoting.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
Lockout
Door pick / decode: Lishi TOY43AT (CW).
27 verified sources · Last verified: 2026-08-06
