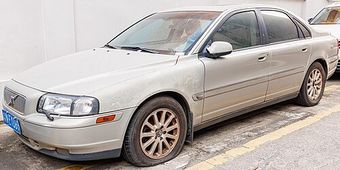

Volvo S80 1st generation (1999–2006) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU58

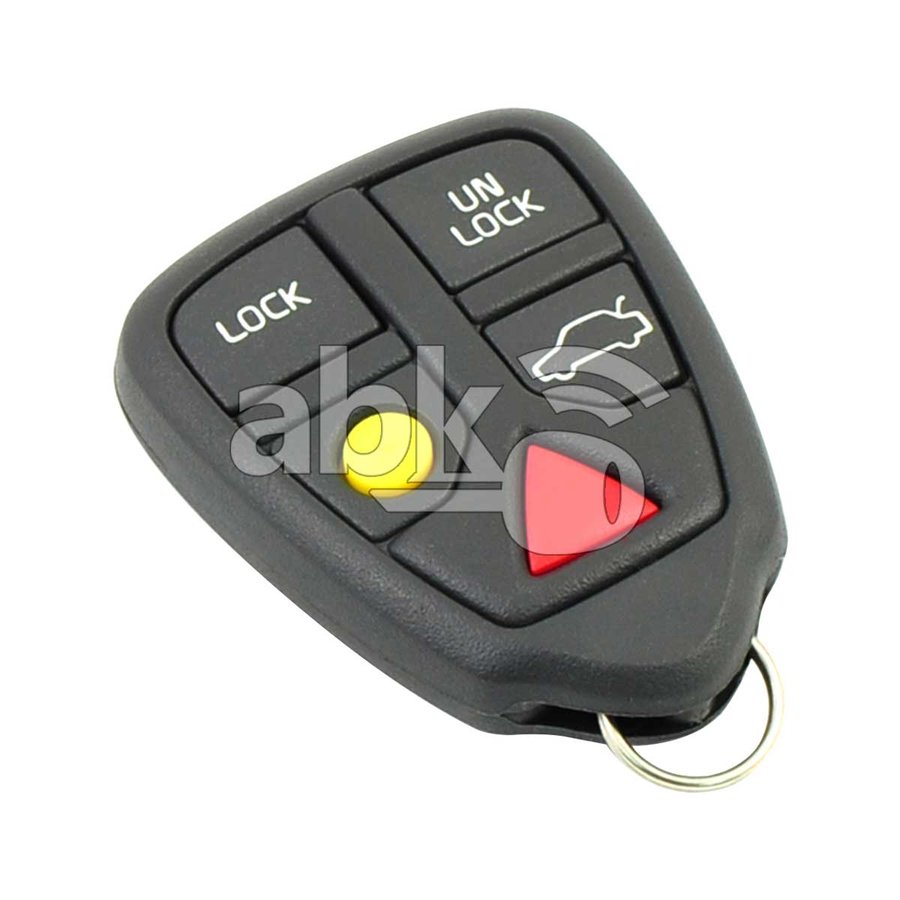

Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LQNP2T-APU | 1999–2003 NA | LQNP2T-APU | 8685150 | none | 315 MHz | CR2032 | NE66 |
| 315 MHz · LQNP2T-APU | 2004–2006 NA | LQNP2T-APU | 8688799 | Megamos ID48 | 315 MHz | CR2032 | NE66 |
| 433.92 MHz · 8685151 | 1999–2003 EU/RoW | n/a | 8685151 | none | 433.92 MHz | CR2032 | NE66 |
| 433.92 MHz · 8688800 | 2004–2006 EU / JP / RoW | n/a | 8688800 | Megamos ID48 | 433.92 MHz | CR2032 | NE66 |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · No DTC scan needed.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis Volvo S80 (1999-2006) is pre-immobilizer — no transponder chip. The blade alone starts the vehicle. Locksmith cuts to OEM code from VIN or existing key. No chip-programming tools needed. Remote (if equipped) learned via in-vehicle key sequence per OEM service manual.
- Key/remote: ensure existing battery (if applicable) is functional before starting.
- Tool kit context: Lonsdor K518 USA + Autel IM608 Pro II + IMKPA can reprogram remote-function radio for pre-immobilizer cars if equipped. APB112 simulator, G-Box bench EEPROM, XP400 PRO, LKE Smart Key Emulator NOT applicable to mechanical-only chassis.
- Verify chip before booking (this chassis facelift): mechanical-only pre-immobilizer chassis. Some 1996-1999 facelift versions added transponder mid-cycle — confirm key has no chip with Lonsdor K518 reader before quoting.
- Volvo S80 pre-immobilizer — no chip-level AKL. Mechanical AKL via lock cylinder rekey or new ignition cylinder if lost lock.
- Bring ALL replacement remotes (if equipped) before starting in-vehicle programming sequence.
- No professional tool needed for blade — only locksmith cut. Remote-only AKL via in-vehicle key dance.
Lockout
Door pick / decode: Lishi HU58 (CW).
47 verified sources · Last verified: 2026-08-10
