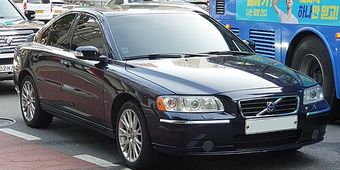

Volvo S60 1st generation (2001–2010) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU58
Key fobs & transponder keys (5 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LQNP2T-APU | 2001–2003 NA (pre-facelift P2) | LQNP2T-APU | 8685150 | none | 315 MHz | CR2032 | NE66 |
| 315 MHz · LQNP2T-APU | 2004–2009 NA (facelift P2) | LQNP2T-APU | 8688799 | Megamos ID48 (Crypto) | 315 MHz | CR2032 | NE66 (HU56) |
| 433.92 MHz · P2T-AE / 8685151 | 2001–2003 (pre-facelift P2, EU / JP / RoW) | n/a | 8685151 | none | 433.92 MHz | CR2032 | NE66 |
| 433.92 MHz · 8688800 | 2004–2009 (facelift P2, EU / JP / RoW) | n/a | 8688800 | Megamos ID48 (Crypto) | 433.92 MHz | CR2032 | NE66 (HU56) |
| transponder · NE66 ID48 · 9203132 | 2001–2009 (P2, all markets; supersedes early two-piece + service blanks) | n/a | 9203132 | Megamos ID48 (Crypto) | n/a | n/a | NE66 (HU56) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Volvo VIDA dealer / k518.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear IMMO/CEM DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Volvo S60 1st gen P2, 2001-2010) spans the P2 platform era — uses Volvo CEM module with Megamos crypto chip. Lonsdor K518 + Volvo P2 package covers Add Key/AKL via OBD cluster dump. VIDA dealer access required for newest 2010 builds.
- Volvo legacy 2001-2010 era.
- Volvo legacy era (1999-2008) uses Volvo CEM-based proprietary IMMO. Often requires Volvo VIDA factory tool. Aftermarket support limited — many shops decline older Volvo work.
- AKL erases existing keys — bring minimum 2 new Volvo keys matched to chip.
Lockout
Door pick / decode: Lishi HU58 (CW).
62 verified sources · Last verified: 2026-08-06
