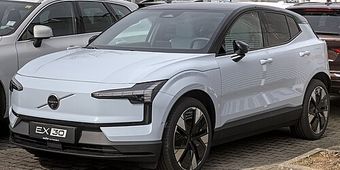

Volvo EX30 EV 1st generation (2024–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU101
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

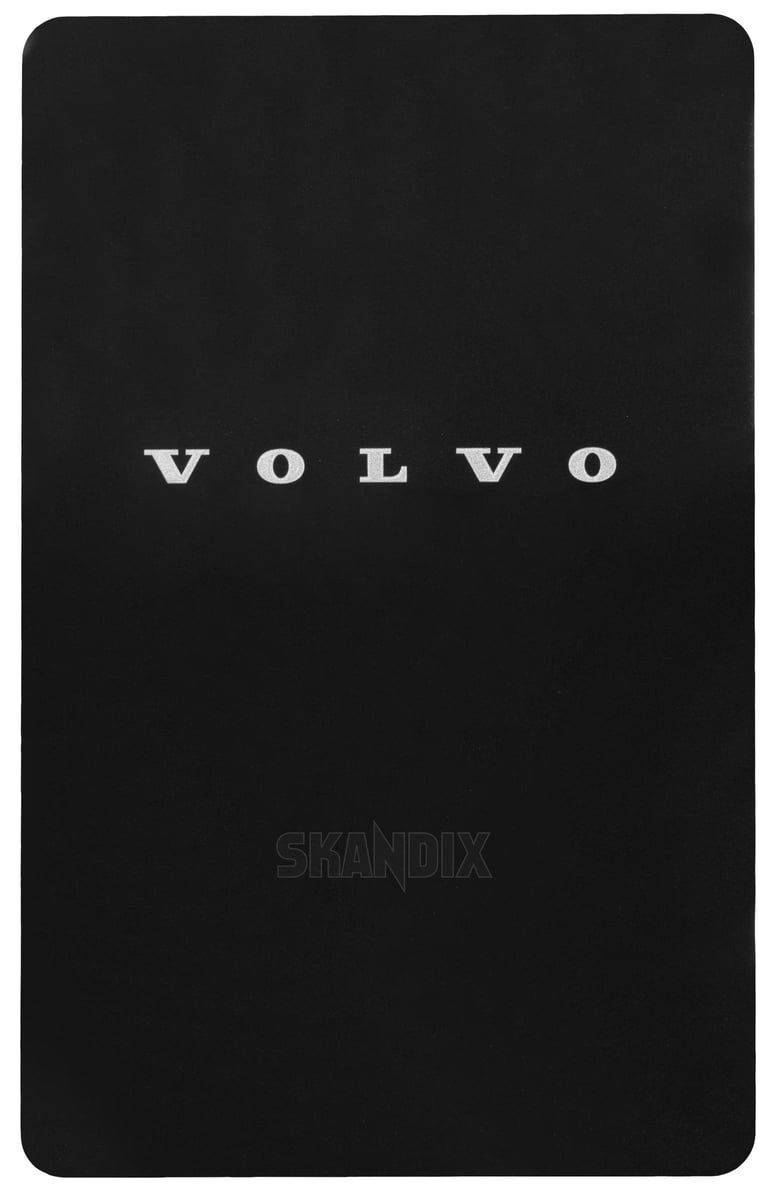

| NFC passive · PN 80001529 | 2024-2027 (US 2025+) | n/a | 80001529 | NFC passive (Geely SEA secure element; no active RF transmitter) | n/a | none | none |
| 434 MHz - 80006754 | 2024-2025 accessory (EX30 from 2024, EX30 Cross Country from 2025); US Sport Key kits Kit121/Kit122/Kit124 | n/a | 80006754 | 8A (TIRIS RF430) | 433.92 MHz | CR2450 | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Volvo VIDA dealer ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — Volvo IMMO requires OBD diagnostic tool with Volvo package.
- On site: engine off · Clear IMMO/CEM DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Volvo EX30, 2024-2025) spans the new Geely SEA EV platform — NOT Volvo SPA/CMA. Aftermarket coverage is minimal as of 2026 since EX30 is co-developed with Zeekr/Smart on China-built Geely architecture. Autel IM608 II + Xhorse VVDI Key Tool Plus + Lonsdor K518 Volvo packages cover SPA/CMA only. EX30 requires dealer-only Volvo VIDA flow as of late 2026 — verify before quoting.
- Volvo newest EV (SEA platform) era.
- Volvo EX30 EV (2024+) is newest Volvo on Geely SEA platform — narrow aftermarket coverage. Verify Lonsdor/Autel coverage.
- AKL erases existing keys — bring minimum 2 new Volvo keys matched to chip.
Lockout
Door pick / decode: Lishi HU101 (CW).
23 verified sources · Last verified: 2026-08-09
