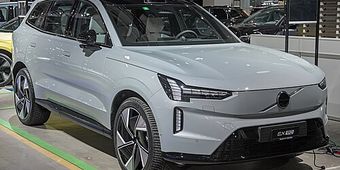

Volvo EX90 EV 1st generation (2024–2025) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU101
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| UWB 6.5/8 GHz · HYQYBN00 | 2024–2025 global (all markets) | HYQYBN00 | 32449088 | Denso RFK — UWB + BLE + NFC/LF (passive entry, no transponder blade) | UWB 6489.6 / 7987.2 MHz · BLE 2402-2480 MHz · LF/NFC 0.110-0.205 MHz | rechargeable internal cell | none |
| 434 MHz · YGOHUF8432 | 2024–2025 global (optional accessory) | YGOHUF8432 | 32398432 | 8A (TIRIS RF430) | 433.92 MHz | CR2032 (sealed, non-replaceable) | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Volvo VIDA dealer ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: not available — Volvo IMMO requires OBD diagnostic tool with Volvo package.
- On site: engine off · Clear IMMO/CEM DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Volvo EX90, 2024-2025) spans the new SPA2 EV platform — flagship Volvo EV with refreshed CEM/IAM modules. Aftermarket coverage is minimal as of 2026. Autel IM608 II + Lonsdor K518 + Xhorse VVDI Key Tool Plus Volvo packages cover legacy SPA/CMA, not SPA2 EV. EX90 currently requires dealer Volvo VIDA flow — verify aftermarket status before quoting.
- Volvo newest EV (SPA2 flagship) era.
- Volvo EX90 EV (2024+) is newest Volvo flagship — narrow aftermarket coverage.
- AKL erases existing keys — bring minimum 2 new Volvo keys matched to chip.
Lockout
Door pick / decode: Lishi HU101 (CW).
38 verified sources · Last verified: 2026-08-10
