Volvo XC70 2nd generation (2001–2007) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HU56

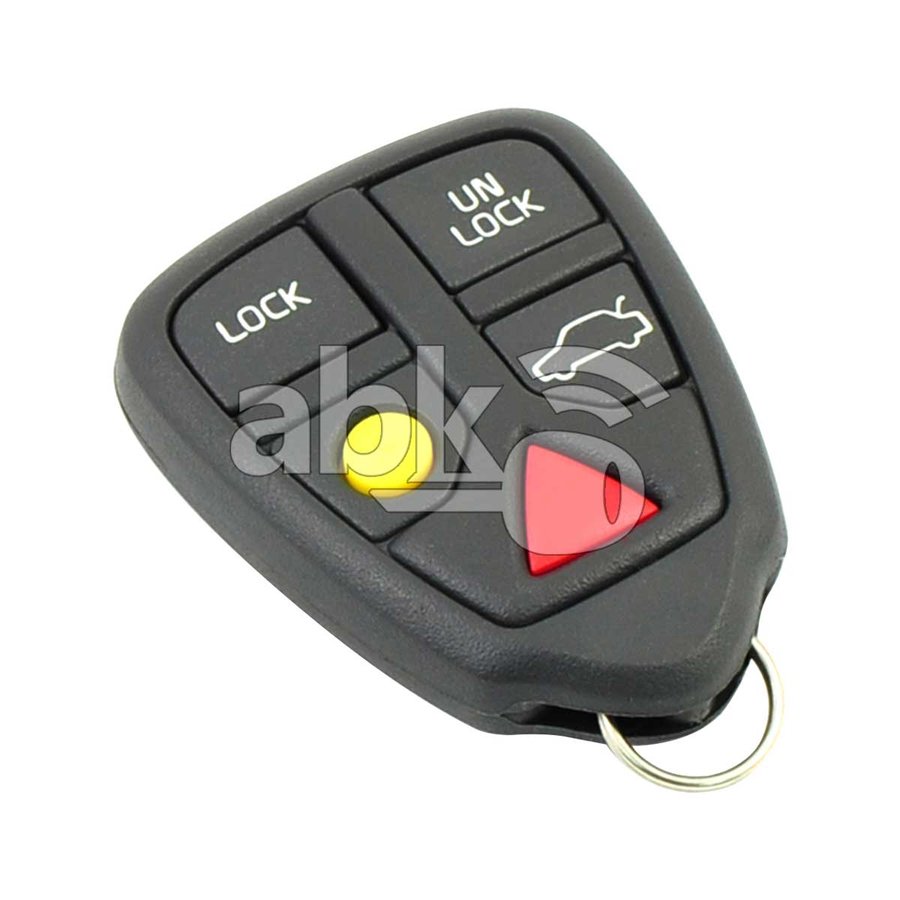

Key fobs & transponder keys (5 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LQNP2T-APU | 2001–2003 NA pre-facelift P2 | LQNP2T-APU | 8685150 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · LQNP2T-APU | 2004–2007 NA facelift P2 | LQNP2T-APU | 8688799 | Megamos Crypto ID48 | 315 MHz | CR2032 | NE66 |
| transponder · 9203132 (NE66 ID48) | 2001–2007 all markets (the no-RF ignition / spare key) | n/a | 9203132 | Megamos Crypto ID48 | n/a | n/a | NE66 (HU56 / S66NN-P, 4-track) |
| 433.92 MHz · 8685151 (P2T-AE) | 2001–2003 Europe + Middle East pre-facelift P2 | n/a | 8685151 | none | 433.92 MHz | CR2032 | n/a |
| 433.92 MHz · 8688800 (KIR EU/JP) | 2004–2007 Europe + Japan + Asia-Pacific facelift P2 | n/a | 8688800 | Megamos Crypto ID48 | 433.92 MHz | CR2032 | HU56 (NE66) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Volvo VIDA dealer / k518.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear IMMO/CEM DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Volvo XC70 2nd gen P2, 2001-2007) spans the P2 platform era — uses Volvo CEM module with Megamos crypto chip. Lonsdor K518 + Volvo P2 package covers Add Key/AKL via OBD cluster dump. Same procedure as V70 P2 sibling.
- Volvo legacy 2001-2007 era.
- Volvo legacy era (1999-2008) uses Volvo CEM-based proprietary IMMO. Often requires Volvo VIDA factory tool. Aftermarket support limited — many shops decline older Volvo work.
- AKL erases existing keys — bring minimum 2 new Volvo keys matched to chip.
Lockout
Door pick / decode: Lishi HU56 (CW).
68 verified sources · Last verified: 2026-08-10
Open full case in KeyAssist →Step-by-step tool menu paths, verified source links and video guides for this case are in the KeyAssist app — free to start, works offline.
