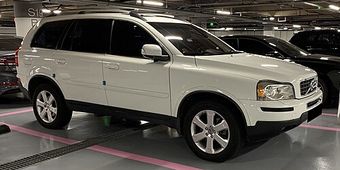

Volvo XC90 1st generation (2003–2015) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HU56

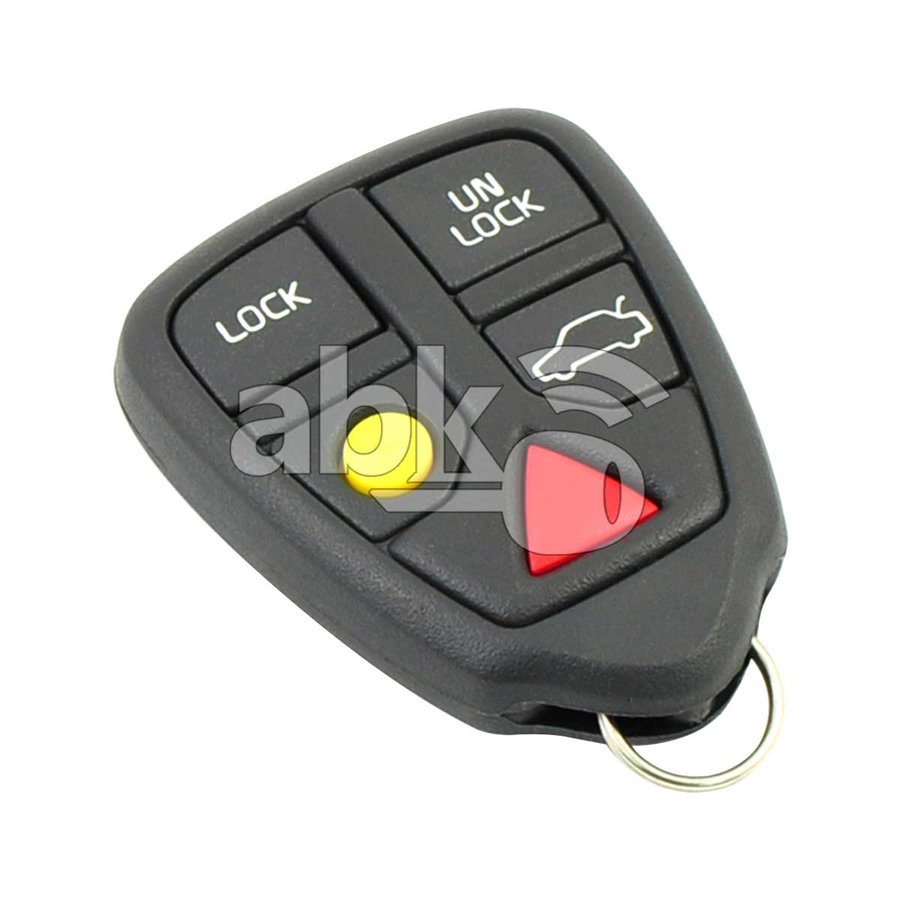

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LQNP2T-APU | 2003–2004 NA early build | LQNP2T-APU | 8685150 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · LQNP2T-APU | 2004–2015 NA | LQNP2T-APU | 8688799 | Megamos ID48 | 315 MHz | CR2032 | NE66 |
| 433.92 MHz · 8688800 | 2004–2014 EU/RoW + JP + GCC | n/a | 8688800 | Megamos ID48 | 433.92 MHz | CR2032 | HU56 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Volvo VIDA dealer / k518.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear IMMO/CEM DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Volvo XC90 1st gen, 2003-2015) spans P2 platform with chip evolution — early (2003-2007) Megamos crypto, mid (2008-2014) PCF7945, late (2015 facelift) HITAG-AES. Verify chip before ordering blanks. Lonsdor K518 + Volvo package covers Add Key/AKL.
- Volvo legacy 2003-2015 era.
- Volvo legacy era (1999-2008) uses Volvo CEM-based proprietary IMMO. Often requires Volvo VIDA factory tool. Aftermarket support limited — many shops decline older Volvo work. XC90 1 spans Ford era (2003-2014) and Geely transition.
- AKL erases existing keys — bring minimum 2 new Volvo keys matched to chip.
Lockout
Door pick / decode: Lishi HU56 (CW).
54 verified sources · Last verified: 2026-08-17
