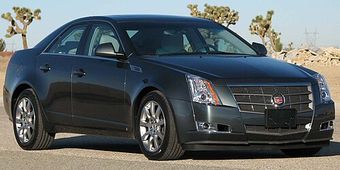

Cadillac CTS 2nd generation (2008–2013) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- B111

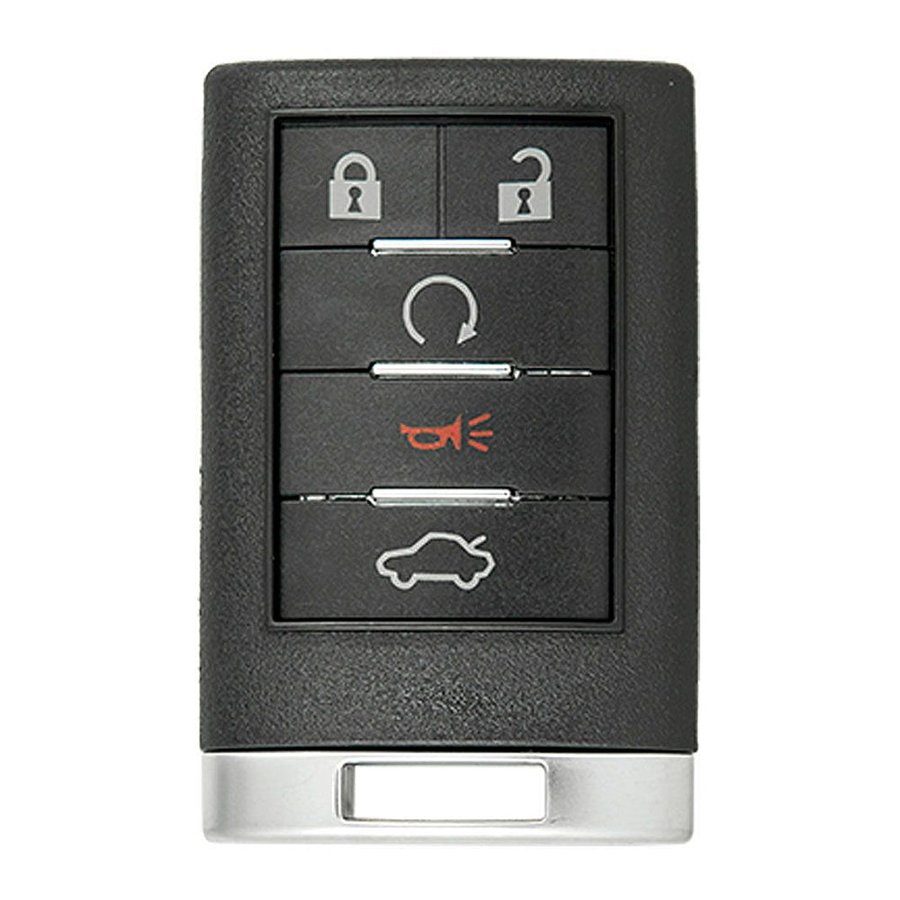

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · OUC6000066 | 2008-2013 NA + GCC | OUC6000066 | 20998255 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · M3N5WY7777A | 2008-2014 NA + GCC (push-button-start trims) | M3N5WY7777A | 25943676 | Philips/NXP HITAG-2 ID46 (PCF7952E) | 315 MHz | CR2032 | B111 / B106 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518/tech2.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off.
- Bring: Photo ID + vehicle registration. NASTF credentials for PIN lookup.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Cadillac CTS 2nd gen, 2008-2013) spans GM PK3+ Circle+ rolling-code era — uses GM Sigma II RWD platform. 4-digit GM security PIN REQUIRED. Sources: NASTF VSP, AllData on-demand, GM Tech2 dealer, K518 built-in PIN list. Coupe + Sport Wagon variants share the same IMMO platform.
- On-board 10-min cycle works on SOME early PK3 (not PK3+ rolling-code) — verify if attempting that path.
- CTS 2 YAML chip data may be incomplete — most 2008-2013 CTS use PK3+ ID46.
- PIN sources: NASTF (preferred), AllData, dealer with proof of ownership.
- AKL erases existing key registrations — bring minimum 2 new key blanks.
Lockout
Door pick / decode: Lishi B111 (CW).
46 verified sources · Last verified: 2026-08-10
Open full case in KeyAssist →Step-by-step tool menu paths, verified source links and video guides for this case are in the KeyAssist app — free to start, works offline.
