Hyundai Accent 2nd (LC) (2000–2005) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- HYN11
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 311 MHz · PINHACOEF311T | 2001-2005 NA (post-PINHACOEF311T grant 2001-03-28) | PINHACOEF311T | 95430-3D201 | none | 311 MHz | CR2032 | n/a |
| 433 MHz · 81996-1C300 | 2002-2005 LC (EU/UK/India/Russia/Australia + GCC/Middle East; Korea/Asia as "Verna") | n/a | 81996-1C300 | Philips PCF7936 (Crypto ID46) | 433 MHz | CR2032 | HYN6 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: See risks for PIN source.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+.
- Bring: Photo ID + vehicle registration. VIN for code-cut if no working mechanical key.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions

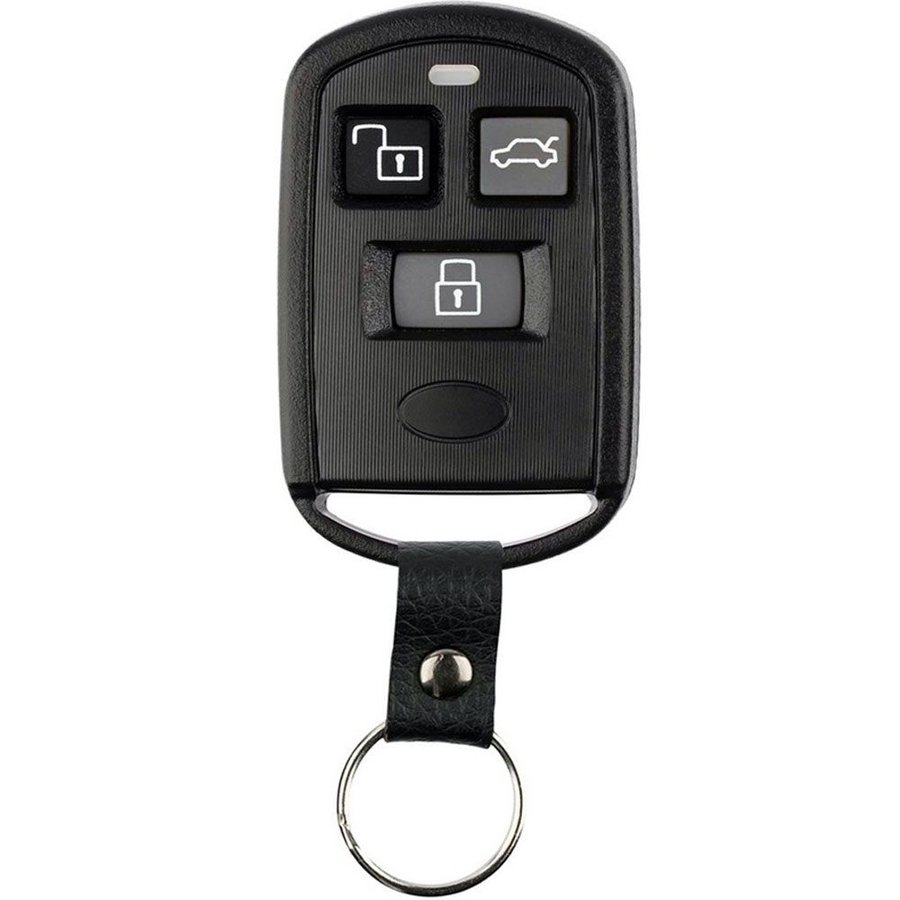

- This chassis (Hyundai Accent LC, 2nd gen, 2000-2005 NA) has SPLIT key system: separate MECHANICAL ignition key (HY14 blade, NO transponder chip — pre-Smartra era for Accent) + separate REMOTE FOB for keyless entry only (PINHACOEF311T 3-btn at 311 MHz, OEM PN 95430-3D201 / alt 95430-09000). Verify trim — keyless-entry-equipped trims only get the remote; base trims have mechanical-only.
- NO transponder IMMO on Accent LC NA — Smartra IMMO did not arrive on Accent until the MC generation (2006+). Mechanical ignition key is pure cut blank, no electronics. Cutting requires only the bitting code — no programming. Locksmiths often mistake LC for MC (2006+) which DOES have transponder — verify generation by year before quoting.
- Remote fob 311 MHz is unusual frequency (not standard NA 315 MHz) — verify chip before ordering blanks. Older aftermarket fobs labeled "315 MHz" may NOT pair with the 311 MHz BCM. Hyundai used 311 MHz on Accent LC + Sonata EF + Elantra XD same era (2000-2005). Most reputable replacement fobs are correctly tuned but verify FCC label on the back.
- AKL on this chassis: mechanical HY14 blade cut requires lock cylinder decoding (pick / impression / VIN-derived bitting). Remote AKL erases all existing pairings — bring minimum 2 new PINHACOEF311T-compatible fobs (311 MHz, NOT 315).
- NO transponder on Accent LC NA = no risk of bricking electronics. NO NASTF VSP required. Mechanical-cylinder failure modes only. The "Smartra" IMMO + transponder did not arrive on Accent until MC generation (2006+) — verify generation by year before quoting.
- Verify trim — base trims may have NO remote fob (mechanical-only), in which case AKL is purely mechanical decoding. Keyless-entry trims need both mechanical AKL + remote re-programming.
Lockout
Door pick / decode: Lishi HYN11 (CCW).
33 verified sources · Last verified: 2026-08-10
