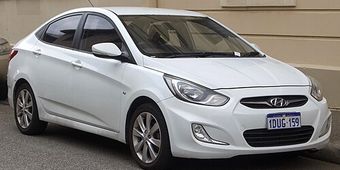

Hyundai Accent 4th (RB) (2012–2017) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY20

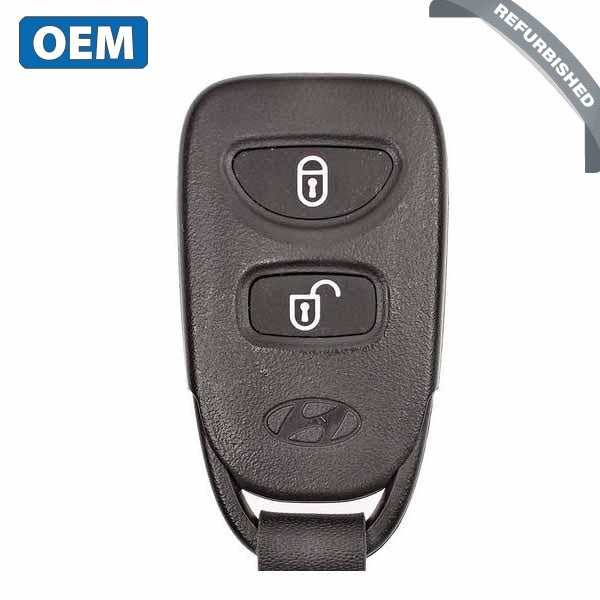

Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · TQ8-RKE-3F01 | 2012–2014 NA — early production | TQ8-RKE-3F01 | 95430-1R200 | n/a | 315 MHz | CR2032 | n/a |
| 433.92 MHz · TQ8-RKE-4F14 | 2014–2017 NA — mid/late production | TQ8-RKE-4F14 | 95430-1R300 | n/a | 433.92 MHz | CR2032 | n/a |
| transponder · 81996-1R000 | 2012–2017 NA — required for engine start | n/a | 81996-1R010 | Philips ID46 (PCF7936) | n/a | n/a | HY18 (ILCO HY18P / JMA HY-19D.P3) |
| 433.92 MHz · 95430-1RAB1 | 2011–2018 — Accent/Solaris/Verna/SB11 export markets | n/a | 95430-1RAB1 | Philips ID46 (PCF7936) | 433.92 MHz | CR2032 | HYN17 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Accent RB, 2012-2017) uses a Philips ID46 (PCF7936) transponder on the HY18 blade across the whole run, not the Texas 4D60 to PCF7936 split this text once assumed. Some RB Accents left the factory with no immobiliser at all — check for an immobiliser telltale on ignition-on before quoting a chip. IMMO key registration ALWAYS erases ALL previously registered keys — collect all existing keys before procedure.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY20 (CCW).
77 verified sources · Last verified: 2026-08-10
