Hyundai Azera 4th (TG) (2006–2011) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY20
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

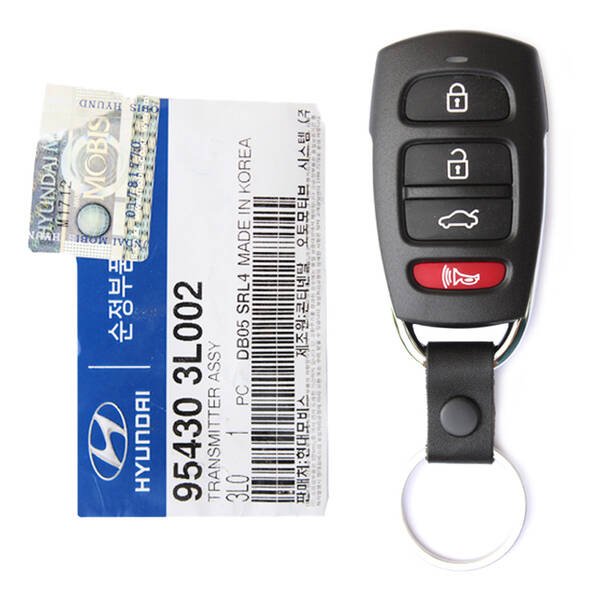

| 447 MHz · 95430-3L002 | 2006–2010 — 447 MHz spec fob (no US FCC grant exists for this hardware) | n/a | 95430-3L002 | none | 447 MHz | CR2032 | n/a |
| 315 MHz · SY52NDFNA04 | 2007–2011 NA (post-SY52NDFNA04 grant 2007-10-25) | SY52NDFNA04 | 95430-3L022 | none | 315 MHz | CR2032 | n/a |
| transponder · HY20 / ID46 | 2006–2011 Azera (NA) all trims — the same 81996-3L010 blank is catalogued for 2011-2012 Sonata, 2009-2012 Genesis and 2009-2011 Kia Borrego; export Grandeur TG fitment not separately verified | n/a | 81996-3L010 | Philips ID46 (PCF7936) | n/a | n/a | HY20 |
| 433 MHz · 95430-3L600 | 2006-2011 (vendor fitment tables run 2006-2012: Grandeur in Europe/AU/NZ/Korea/Japan; Azera in China/SEA/GCC) | n/a | 95430-3L600 | Philips PCF7936 (ID46 / Hitag-2) | 433.92 MHz | CR2032 | HYN17 / HY20 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Azera TG 1st gen flagship spans, 2006-2011) spans the PCF7952 ID46 smart key era from launch — Azera TG replaced XG350 as flagship. Smart key system with proximity entry. IMMO key registration ALWAYS erases ALL previously registered keys. Bring minimum 2 new PCF7952 keys before procedure.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY20 (CCW).
33 verified sources · Last verified: 2026-08-10
