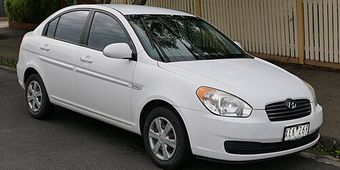

Hyundai Accent 3rd (MC) (2006–2011) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- HY16

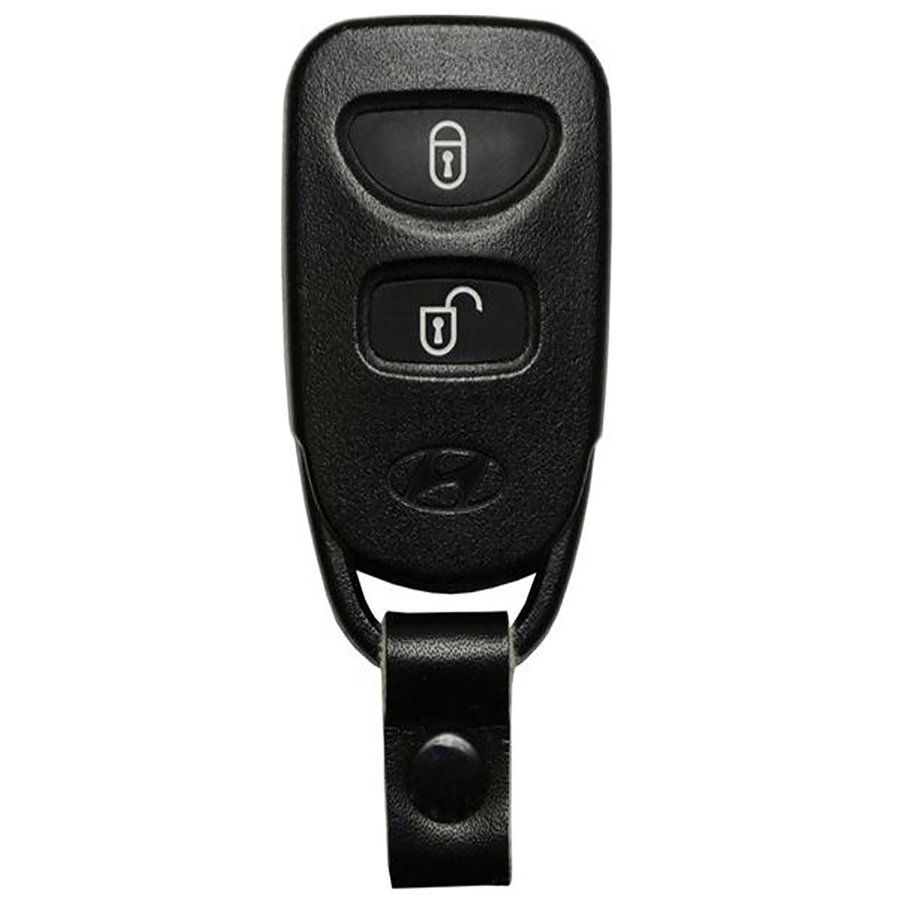

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · PLNHM-T002 | 2006–2011 NA — all trims with factory keyless entry | PLNHM-T002 | 95430-1E011 | none | 315 MHz | CR2032 | n/a |
| transponder · 81996-25010 | 2006–2011 — Canada and export (Europe / Asia-Pacific / GCC) immobiliser-equipped cars; US fitment unverified | n/a | 81996-25010 | Philips ID46 (PCF7936) | n/a | n/a | HYN6 |
| 433 MHz · 81996-1C300 | 2006–2011 — Europe / Korea (Verna) / China (Verna) / India (Verna) / Middle East | n/a | 81996-1C300 | Philips ID46 (PCF7936) | 433 MHz | CR1220 | HYN6 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Accent MC 3rd gen, 2006-2011) spans the Texas 4D60 → PCF7936 ID46 chip transition — 2006-2008 typically 4D60, 2009-2011 typically PCF7936 ID46. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY16 (CCW).
32 verified sources · Last verified: 2026-08-10
