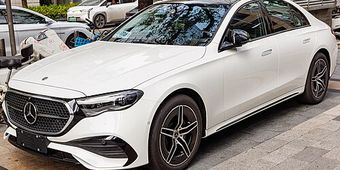

Mercedes E-Class 6th (W214) (2024–2025) — Key Programming Reference
- Difficulty
- expert
- Lishi / lockout
- HU64
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

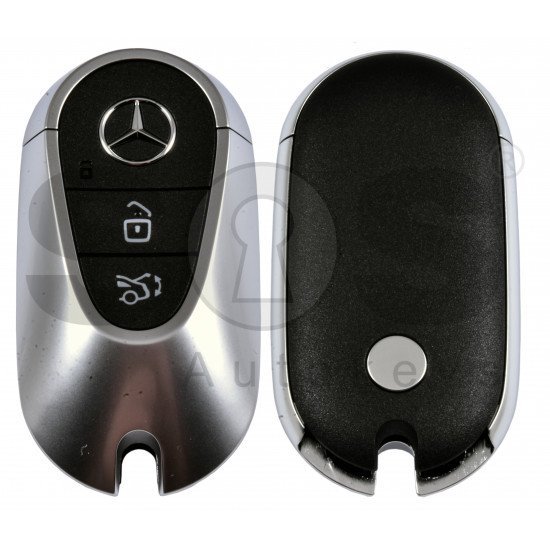

| 434 MHz · IYZMS5I | 2024–2025 | IYZMS5I | A2069057105 | Mercedes FBS4 BGA (AES) transponder | 433.92 MHz | CR2032 | HU64 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Mercedes XENTRY CSC ticket.
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Clear EIS/IR DTCs.
- Bring: Photo ID + vehicle registration. Title strongly recommended for AKL.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Mercedes W214 E-class, 2024-2025) spans the newest FBS4 BGA generation — no aftermarket support yet for 2024+ Mercedes FBS4 platforms. Autel IM608 II + IMKPA and Xhorse VVDI MB cover earlier FBS4 chassis (W205/W213/W222/W246) but NOT W214/X254 generation. CSC ticket approximately $50-100 per VIN via dealer XENTRY portal — this is the practical path. Verify Autel/Xhorse W214 coverage status before quoting.
- AKL on FBS4 typically requires EIS removal + bench programming.
- Newest Mercedes (2022+) can require dealer-bound CSC ticket — aftermarket coverage limited. Confirm tool vendor coverage for the exact VIN before scheduling AKL.
- AKL erases existing keys — bring minimum 2 new BGA-compatible Mercedes key blanks.
Lockout
Door pick / decode: Lishi HU64 (CW).
16 verified sources · Last verified: 2026-08-10
