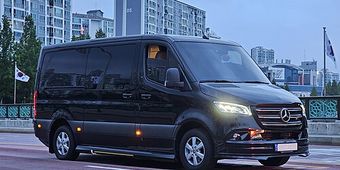

Mercedes Sprinter 3rd (VS30) (2019–2026) — Key Programming Reference
- Difficulty
- expert
- Lishi / lockout
- HU64

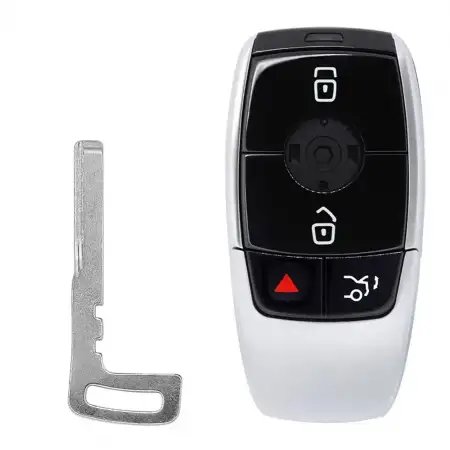

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · NBGDM3 | 2019–2026 NA (Freightliner-badged through MY2021, Mercedes-badged after) | NBGDM3 | A9079059406 | Mercedes FBS4 (dealer-bound processor key — no standard aftermarket transponder) | 315 MHz | CR2032 | HU64 |
| 433.92 MHz · A9079059506 | 2019–2026 (W907/W910, RoW 433 MHz markets) | n/a | A9079059506 | Mercedes FBS4 (dealer-bound processor key — no standard aftermarket transponder) | 433.92 MHz | CR2032 | HU64 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — Dealer / XENTRY online.
- Online / server access: required — Mercedes XENTRY (dealer).
- On-board (no tool) sequence: not available — Mercedes FBS4/DAS4 keys are coded through Mercedes' online system - there is no owner-side or aftermarket-tool route on the VS30 Sprinter.
- On site: engine off · 12V+ battery support · Clear EIS DTCs.
- Bring: Photo ID + vehicle registration. VIN cross-check before start.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis is Mercedes FBS4/DAS4 (VS30 Sprinter, 2019-2026) and FBS4 key coding is dealer-gated: the key is issued by Mercedes' own online system under two-way cryptographic verification, so no aftermarket tablet - Autel, Xhorse, Lonsdor, OBDSTAR, Launch or otherwise - can add a key or recover an all-keys-lost here. Quote the repair as a dealer visit, a XENTRY-equipped shop, or a specialist EIS/ECU service. Do not book it as an OBD or bench tablet job.
- Confirm the chassis before quoting: the 2007-2018 NCV3/W906 Sprinter that precedes this one is FBS3 with a two-piece Fobik key and IS an aftermarket tablet job, while this VS30/W907 is FBS4 and is not. South American W906 production continued past 2018, so a 2019-plate Sprinter is not automatically VS30 - check the EIS and key shape, not the model year alone.
- Mercedes EIS is fragile — battery support 12V+ MANDATORY; EIS lockout if voltage drops mid-read.
- Mercedes BGA smart key: ensure existing key fob battery is functional before starting.
- There is no bench workaround on FBS4: the EIS is encrypted and its password cannot be read out the way an FBS3 EIS dump allows, so removing the EIS buys nothing. All-keys-lost on this chassis is a dealer or specialist-service job.
- All existing keys erased. Bring ALL replacement BGA keys before starting — minimum 2.
- Keep all existing/lost key fobs at least 10 metres from vehicle during AKL.
Lockout
Door pick / decode: Lishi HU64 (CCW).
19 verified sources · Last verified: 2026-08-10
