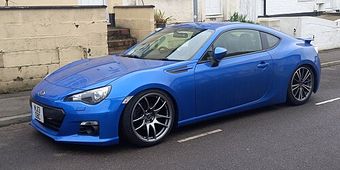

Subaru BRZ 1st (ZC6) (2013–2021) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- TOY43AT
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 314.35 MHz · HYQ12BBY | 2013–2020 NA (non-push-start trims + base remote) | HYQ12BBY | 57497-CA110 | Texas 4D60 80-bit (Subaru/Scion G) | 314.35 MHz | CR2016 | TR47 (Silca TOY43) |
| 314.35 MHz · HYQ14AHC | 2014–2020 NA push-button-start trims | HYQ14AHC | 88835-AL04A | Texas 4D60 80-bit (Subaru G) | 314.35 MHz | CR2032 | TOY51 |
| 433.92 MHz · HYQ14AHB | 2012–2020 European (GT86/BRZ) + Australia + Asia-Pacific markets | HYQ14AHB | 88835-AL012 | Texas 4D / TMS37126 DST-4D 80-bit (Subaru G, P1=F1) | 433.92 MHz | CR2032 | TOY51 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN required.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Subaru Texas 4D60 80-bit G-type smart key IMMO requires OBD diagnostic tool.
- On site: engine off · Maintain 12V+ · Clear IMMO/BCM DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- BRZ ZC6 (2013-2021) shares Toyota 86/Scion FR-S smart-key hardware but uses Subaru-branded FCC HYQ14ACX (315 MHz, Texas 4D60 80-bit G) - Toyota-side aftermarket part numbers (89904-CA000 etc.) are NOT interchangeable; verify Subaru-stamped fob before ordering. Programming a Toyota 86 fob on a Subaru BRZ will fail authentication.
- No external PIN required for Subaru Texas 4D60 80-bit G-type add key. Autel/Smart Pro reads IMMO data internally via OBD.
- No internet required for Autel add key on Subaru Texas 4D60 80-bit G-type. Smart Pro ADS2255/ADS2330 requires WiFi for AD server.
- Subaru smart system limit: maximum 4 keys per vehicle. If 4 already programmed, one must be erased before adding new key.
- BRZ ZC6 push-start AKL requires APB112 smart key simulator (about USD 130) - the simulator creates a temporary emulator key that the IMMO accepts, then the new physical fob is registered. Without APB112, AKL is impossible on push-start BRZ; aftermarket OBD path uses APB112 as mandatory hardware. Cite: Autel IMKPA documentation 2024-08.
- No external PIN required for Subaru Texas 4D60 80-bit G-type AKL.
- No internet required for Autel + APB112 AKL on Subaru Texas 4D60 80-bit G-type. Smart Pro requires WiFi for AD server.
- Subaru AKL on G-key / 8A proximity requires APB112 simulator (Autel) OR ADC2015 emulator cable (Smart Pro). Verify tool + accessory before scheduling.
- Min 2 new smart keys recommended for AKL.
- AKL erases all existing key registrations — any lost keys will not be retrievable.
Lockout
Door pick / decode: Lishi TOY43AT (CW).
52 verified sources · Last verified: 2026-08-09
