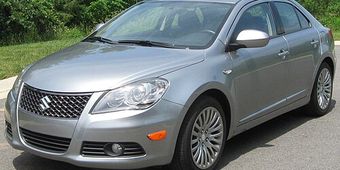

Suzuki Kizashi 1st generation (2010–2013) — Key Programming Reference
- Difficulty
- hard
- Lishi / lockout
- HU87

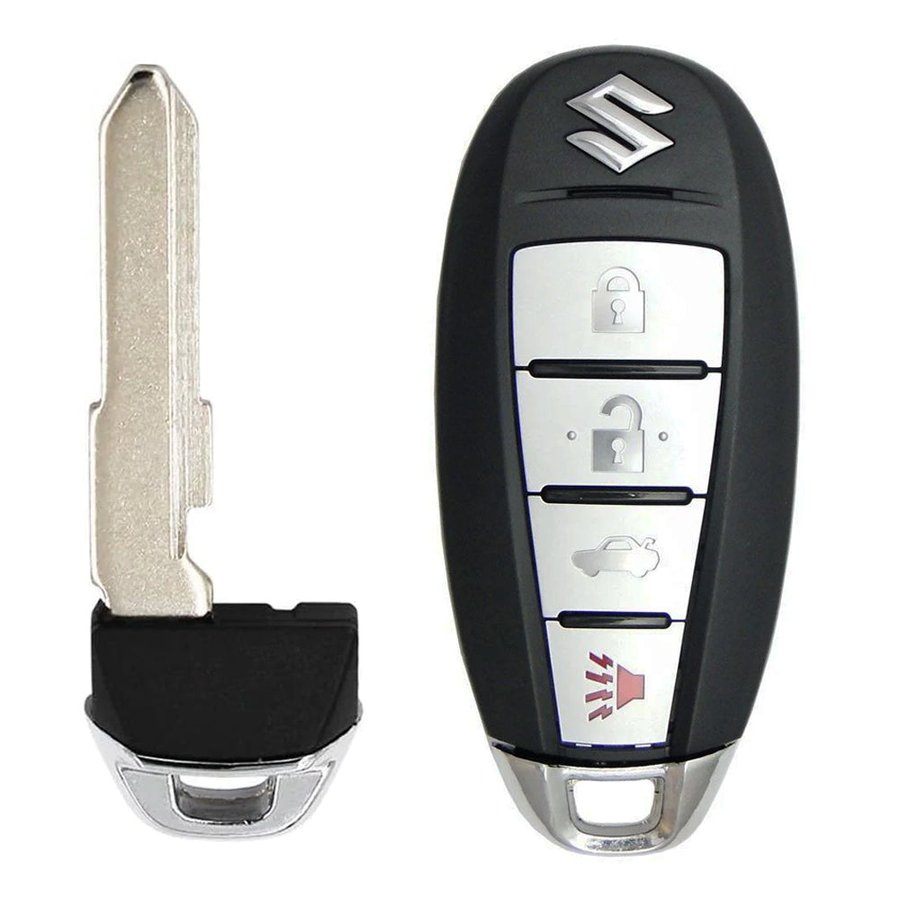

Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KBRTS009 | 2010–2013 NA (US 2010–2013, Canada 2010–2014, Mexico 2009–2015) | KBRTS009 | 37172-57L21 | Philips Crypto 2 / ID46 / Hitag2 (PCF7952) | 315 MHz | CR2032 | SUZ20 |
| 433.92 MHz · 37172-57L10 | 2010–2015 export (EU/UK, GCC/Middle East, Australia & New Zealand, Japan, India, Pakistan) | n/a | 37172-57L10 / 37172-57L11 | Philips Hitag2 / ID46 (PCF7952A) | 433.92 MHz | CR2032 | SUZ-10 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Dealer SDT2 handles auth.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — No on-board programming procedure exists for Kizashi. Suzuki SDT2 dealer scan tool required. No aftermarket tool supports this proprietary IMMO — confirmed by multiple independent locksmith sources (McGuire Locksmith, Kizashi Club forum, locksmithkeyless.com).
- On site: engine off · 12V battery support needed · n/a.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- Suzuki Kizashi (2010-2013) uses a PROPRIETARY proximity key IMMO system unique to this chassis — no aftermarket key programmer supports it. Confirmed by McGuire Locksmith Service, Kizashi Club forum (kizashiclub.com), and locksmithkeyless.com as of 2026. Programming requires Suzuki SDT2 dealer scan tool exclusively.
- Dealer cannot program a USED or previously-registered fob — only new, unregistered (virgin) KBRTS009 proximity key blanks can be added. Confirm blank is factory-new before scheduling the job.
- Suzuki Kizashi AKL: same dealer-only constraint as Add Key. No aftermarket programmer supports AKL for this model. Suzuki SDT2 required.
- All existing keys will be erased during AKL — bring min 2 new virgin KBRTS009 blanks. Dealer must perform. Customer needs tow if no working key exists.
Lockout
Door pick / decode: Lishi HU87 (CW).
39 verified sources · Last verified: 2026-08-17
