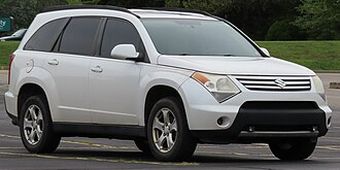

Suzuki XL7 2nd generation (2007–2009) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- B106
Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

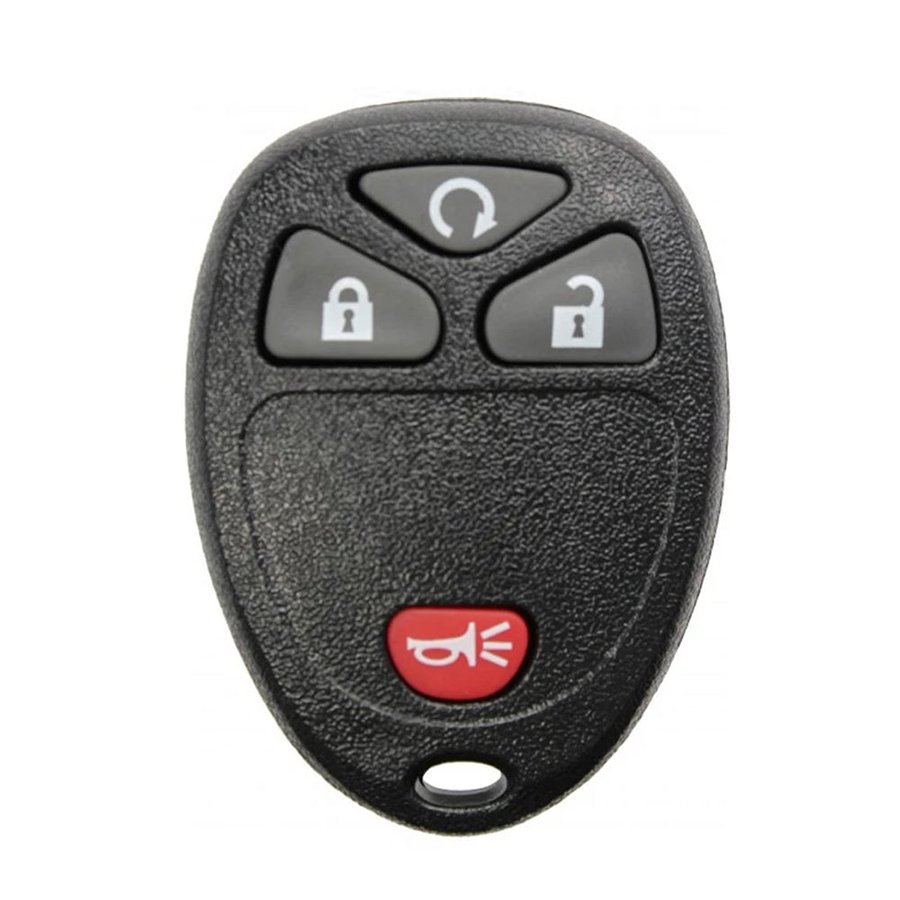

| 315 MHz · OUC60270 | 2007–2009 (NA, Latin America, Middle East — single 3.2L V6 trim) | OUC60270 | 15913421 | none | 315 MHz | CR2032 | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — GM PIN: NASTF/dealer/AllData.
- Online / server access: required — NASTF lookup needed.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · 12V battery support needed · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- Suzuki XL-7 2nd gen is a GM Theta platform — uses GM PK3+ ID46 Circle+ (PCF7941AT) IMMO identical to Chevrolet Equinox 1 (2005-2009). This chassis is NOT Suzuki-native IMMO: spans GM Theta architecture, same platform as Chevrolet Equinox. NASTF 4-digit PIN required: obtain via nastf.org VSP portal (~$1/VIN).
- B111 blade (GM Z-keyway). Do NOT use Suzuki-native KBRTS key blanks — this vehicle is 100% GM hardware. Key blank is OUC60270 fob body with B111 ignition key (PCF7941AT chip).
- Suzuki XL-7 2nd gen is GM Theta PK3+ — AKL erases ALL existing programmed keys. Bring minimum 2 new OUC60270 fobs (B111 blade, PCF7941AT). NASTF 4-digit PIN required.
- AKL on GM PK3+ is rare and not all tools expose it. Confirm 'All Keys Lost' mode is available before starting — some tools only offer Add Key for this platform.
Lockout
Door pick / decode: Lishi B106 (CW).
26 verified sources · Last verified: 2026-08-06
