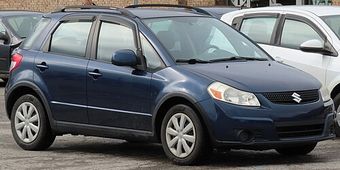

Suzuki SX4 1st generation (2007–2013) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HU87

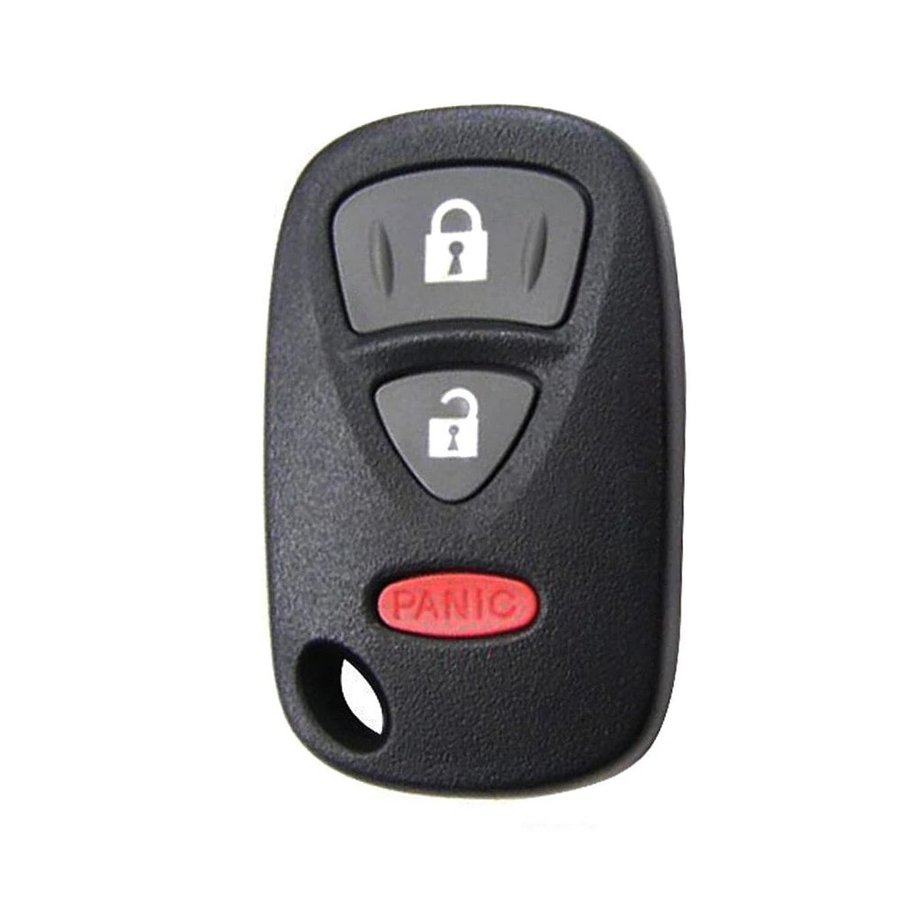

Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · KBRTS005 | 2007–2009 NA (Base, Sport) | KBRTS005 | 37180-64J00 | ID46 (Philips Crypto 2 / Hitag2, PCF7936) | 315 MHz | CR2032 | SZ11R |
| 315 MHz · KBRTS003 | 2007–2013 NA (smart-key-equipped trims) | KBRTS003 | 37172-64J00 | ID46 (Philips Crypto 2 PCF7941AT) | 315 MHz | CR2032 | SUZ20 |
| 433 MHz · 37172-62JV0 | 2007–2013 Europe + Middle East (smart-key-equipped trims) | n/a | 37172-62JV0 | ID46 (Philips Crypto 2 / Hitag2) | 433 MHz | CR2032 | HU133 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN required.
- Online / server access: required — Tool cloud lookup needed.
- On-board (no tool) sequence: possible for this case.
- On site: engine off · 12V battery support needed · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis spans two distinct fob types: KBRTS005 (2007-2009, SZ11R blade, standard remote) supports on-board key learning; KBRTS003 (2007-2013, SUZ20 blade, smart key) requires OBD programmer. Confirm which fob before quoting job.
- KBRTS005 and KBRTS003 are NOT interchangeable — different PN, blade, and programming method. Do not order KBRTS003 blanks for a KBRTS005 vehicle or vice versa.
- AKL erases ALL programmed keys. Bring min 2 new blanks. KBRTS003 (smart, 2007-2013, SUZ20 blade): bring min 2 smart key blanks (PCF7941AT). KBRTS005 (standard, 2007-2009, SZ11R blade): bring min 2 standard key blanks (ID46 PCF7936).
- Confirm which variant before starting AKL — wrong key blank ordered for wrong KBRTS type will leave the customer without any working key.
Lockout
Door pick / decode: Lishi HU87 (CW).
58 verified sources · Last verified: 2026-08-09
