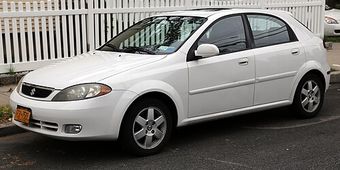

Suzuki Reno 1st generation (2005–2008) — Key Programming Reference
- Difficulty
- easy
- Lishi / lockout
- CH1
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

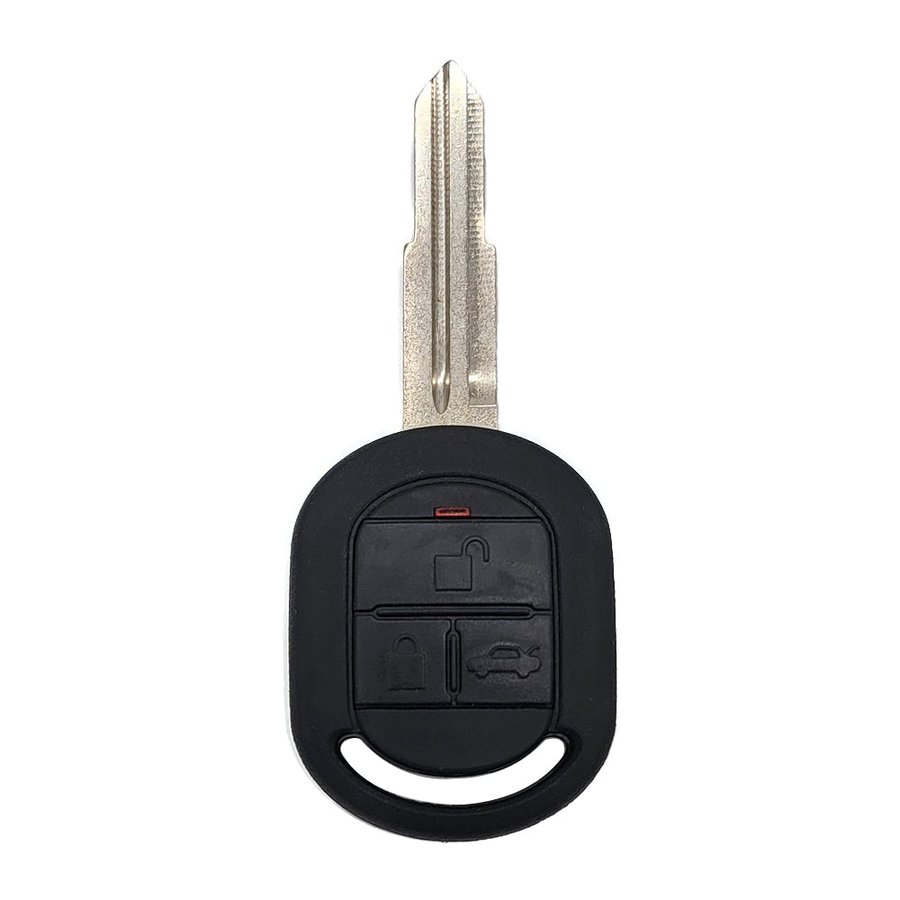

| 315 MHz · NYOSAKS-01TX | 2005–2008 | NYOSAKS-01TX | 37145-85Z00 | none | 315 MHz | CR1616 | n/a |
| DW04RAP non-transp | 2005–2008 | n/a | n/a | none | n/a | n/a | DW04RAP |
Programming procedures
What the job needs
- Add a key: no existing working key needed.
- All keys lost: no existing working key needed.
- PIN / security code: No PIN — mechanical only.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · n/a · n/a.
- Bring: Photo ID + vehicle registration. Title for AKL recommended.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Suzuki Reno 2005-2008) is a rebadged Daewoo Lacetti — US-market base trim has no factory transponder. Mechanical key cutting only. Verify by reading existing key with chip reader; some EU/Korean exports had Texas 4D71 transponder.
Lockout
Door pick / decode: Lishi CH1 (CW).
8 verified sources · Last verified: 2026-08-10
