Tesla Model S 1st generation (2012–2020) — Key Programming Reference
- Difficulty
- expert

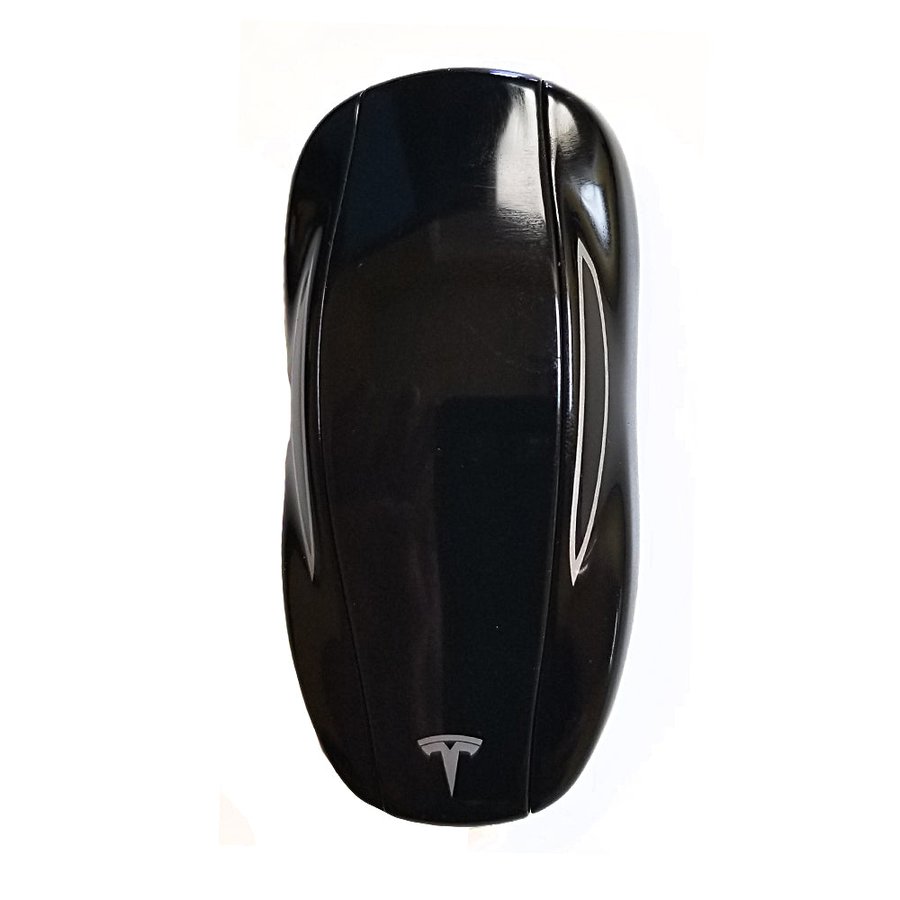

Key fobs & transponder keys (1 variant)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · AQO002 | 2012-2020 NA (1st gen, pre-2021 refresh) | AQO002 | 1455940-00 | none | 315 MHz | CR2032 | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Tesla account auth (no PIN).
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine ready · Vehicle awake / READY mode · n/a.
- Bring: Tesla account access (owner). Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Model S 1st gen, 2012-2020 pre-facelift) spans the original Model S key fob era — owner-managed via touchscreen. Locksmith tools do not apply. Existing key required to authenticate new key add. For AKL, owner must contact Tesla Service with proof of ownership — no aftermarket AKL path exists.
- Existing authenticated key (card / fob / phone) required to add new key.
- If all keys lost: contact Tesla Service (no locksmith path).
- Tesla AKL (all keys lost) is NOT a locksmith service. Refer customer to Tesla Service.
- Tesla Service can provision new key cards to the account via Tesla Mobile Service or service center visit. Customer must provide proof of ownership.
- No aftermarket tool supports Tesla key provisioning.
Lockout
⚠️ Do NOT use air wedge (flush handles). Long reach through top of window or call Tesla.
